This article demonstrates how to take direct control of the TCP control-bit field with Nmap’s –scanflags option, and how to prove the result on the wire with Wireshark. It builds each of the standard flags from its raw value, fires every flag and several flag combinations at a live target, and reads the target’s reaction to infer port state and firewall posture. The work begins with single-bit probes — NULL, FIN, SYN, RST, PSH, ACK, and URG — then escalates to multi-flag bytes, finishing with 0x0F, where the entire low nibble of the flag field is set. The closing sections translate the findings into concrete defensive measures and a summary of what the exercise reveals about anomalous TCP traffic.

Table of Contents

• Introduction
• Lab Environment
• Understanding TCP Control Flags
• Decimal to Hexadecimal Number System
• The –Scanflags Options
• Single Flag Probes
  • NULL — 0x00 (no bits set)
  • FIN — 0x01 (bit 0)
  • SYN — 0x02 (bit 1)
  • RST — 0x04 (bit 2)
  • PSH — 0x08 (bit 3)
  • ACK — 0x10 (bit 4)
  • URG — 0x20 (bit 5)
• Combining Flags with Bitwise OR
  • FIN + PSH + URG — 0x29
  • FIN + SYN + PSH — 0x0B
  • FIN + RST + PSH — 0x0D
  • FIN + SYN + RST + PSH — 0x0F
• Consolidated Results
• Mitigation Strategies
• Conclusion

Introduction

Every TCP segment carries a control-bit field whose individual flags drive the connection lifecycle: SYN opens a handshake, ACK acknowledges data, FIN closes a session gracefully, RST aborts it, and PSH, URG, ECE, CWR, and NS govern delivery and congestion signalling. Standard Nmap scan types send fixed flag patterns, but –scanflags removes that constraint and lets the analyst place any combination of bits into a probe. That control is valuable for two reasons. First, it exposes how a host and its firewall respond to unusual or outright illegal flag combinations, which standard scans never generate. Second, it underpins firewall and intrusion-detection testing as well as operating-system fingerprinting, because different TCP stacks answer the same malformed packet in different ways.

The sections that follow move methodically from theory to practice: a reference for every flag, a short primer on reading hexadecimal, the –scanflags syntax, the single-flag probes, the multi-flag combinations, a consolidated results table, and finally the mitigations a defender should apply.

Lab Environment

A Kali Linux attacker probes a single Linux target across a flat /24 segment. Nmap 7.99 crafts and sends every probe, while Wireshark captures the exchange and decodes the flag field of each segment. Every capture is filtered on ip.addr == 192.168.1.9 so that only traffic to and from the target appears. The table below summarises the setup.



Understanding TCP Control Flags

Because each flag occupies a single bit of the control field, its value is a distinct power of two: FIN sits at bit 0 (1), SYN at bit 1 (2), and the sequence continues up to NS at bit 8 (256). This one-bit-per-flag design is what makes flag arithmetic so simple later — any combination is just the sum, or bitwise OR, of the individual values.

The reference below maps every flag to its decimal value, hexadecimal value, binary pattern, and bit position — the four notations the rest of the article moves between.

Decimal to Hexadecimal Number System

Understanding number systems is fundamental in computer science and cybersecurity. The decimal system, also known as base-10, is the standard number system used in everyday life, utilising digits 0 through 9. However, computers and digital systems often work with hexadecimal (base-16), which provides a more compact way to represent binary data.

The conversion between decimal and hexadecimal follows a straightforward pattern for the first sixteen values. Decimal numbers 0 through 9 maintain identical representations in hexadecimal, appearing as 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9, respectively. The distinction becomes apparent at decimal 10, where hexadecimal transitions to alphabetic characters to represent values that would otherwise require two digits.

In hexadecimal notation, decimal 10 is represented as ‘A’, decimal 11 as ‘B’, decimal 12 as ‘C’, decimal 13 as ‘D’, decimal 14 as ‘E’, and decimal 15 as ‘F’. This single-character representation for values up to 15 is what makes hexadecimal particularly efficient for computing applications. Each hexadecimal digit represents exactly 4 binary bits, making it an ideal intermediate notation for reading and writing binary data in a human-friendly format.

For cybersecurity professionals and penetration testers, hexadecimal notation appears frequently in memory addresses, network protocols, exploit payloads, and debugging operations. Tools such as Wireshark, debuggers, and hex editors display data in hexadecimal format because it provides a balance between the compactness needed for large datasets and the readability required for analysis. Understanding this fundamental conversion is essential for analysing packet captures, crafting exploits, and interpreting memory dumps during security assessments.

The –scanflags Option

Nmap exposes the control-bit field through –scanflags. The option takes a numeric value (decimal or hexadecimal) or a symbolic string of flag names, and Nmap then writes those exact bits into every probe it sends. Pairing it with -p pins the probe to a single port, which keeps each capture short and unambiguous. The general form is:

nmap -p<port> –scanflags <value> <target>

Each probe in the next section sets one bit at a time, walking the flag field upward from 0x00.

Single-Flag Probes

NULL — 0x00 (no bits set)

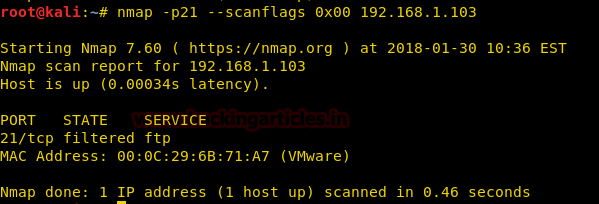

A NULL probe clears all control bits and sends a header with no flags set. Against port 21, the firewall returns nothing, so Nmap records the port as filtered.

nmap -p21 --scanflags 0x00 192.168.1.9

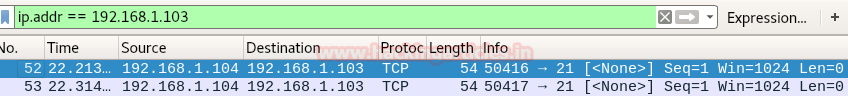

Wireshark confirms the empty flag field: the Info column reports [<None>] for each outbound segment to the target.

FIN — 0x01 (bit 0)

Setting bit 0 raises FIN, the flag that normally signals the orderly end of a session. Sent cold against port 21, the lone FIN draws no reply through the firewall, and Nmap again reports filtered.

nmap -p21 --scanflags 0x01 192.168.1.9

The capture isolates a single [FIN] bit on each probe.

SYN — 0x02 (bit 1)

Bit 1 carries SYN, the flag that opens a TCP handshake. Port 22 answers, so this probe behaves like the start of a genuine connection, and Nmap marks the service open.

nmap -p22 --scanflags 0x02 192.168.1.9

The capture records the full exchange: the attacker’s [SYN], the target’s [SYN, ACK], and the attacker’s [RST] that tears the half-open connection back down.

RST — 0x04 (bit 2)

Bit 2 sets RST, which normally aborts a connection. A bare reset to port 22 produces no useful response, and Nmap reports filtered.

nmap -p22 --scanflags 0x04 192.168.1.9

Wireshark shows the single [RST] bit on each probe.

PSH — 0x08 (bit 3)

Bit 3 raises PSH, which tells the receiver to hand buffered data to the application at once. On its own it carries no connection semantics, so the target stays silent and Nmap records filtered.

nmap -p22 --scanflags 0x08 192.168.1.9

The capture isolates the single [PSH] bit.

ACK — 0x10 (bit 4)

Bit 4 sets ACK, the acknowledgement flag present in every established segment. An unsolicited ACK violates TCP state, so the target answers with a reset; Nmap reads that reset as a closed port.

nmap -p22 --scanflags 0x10 192.168.1.9

The capture pairs the attacker’s [ACK] with the target’s [RST] reply — the reset that drives the closed verdict.

URG — 0x20 (bit 5)

Bit 5 raises URG, which flags urgent data through the urgent pointer. Sent alone, it elicits no response, and Nmap reports filtered.

nmap -p22 --scanflags 0x20 192.168.1.9

Wireshark confirms a single [URG] bit on each probe.

Combining Flags with Bitwise OR

Because each flag owns a unique bit, combining flags is simply a bitwise OR — equivalently, adding their values into one byte. The four combinations below stack progressively more bits, and several of them mix flags that no legitimate session would set together, which is exactly what makes them useful for probing a firewall’s handling of anomalous traffic.

FIN + PSH + URG — 0x29

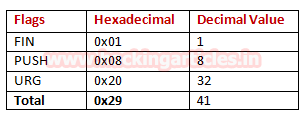

The classic example raises FIN, PSH, and URG together: 0x01 | 0x08 | 0x20 = 0x29 (41 decimal), the flag pattern of an Xmas scan. The breakdown below sums the three flags into one header byte.

Feeding 0x29 to –scanflags sets all three bits in one probe. Against port 22 the target stays silent, and Nmap reports filtered.

nmap -p22 --scanflags 0x29 192.168.1.9

Wireshark decodes the combined byte back into its named flags, showing [FIN, PSH, URG] on each probe — proof that the hex value mapped to exactly the bits intended.

FIN + SYN + PSH — 0x0B

Moving into the low nibble, FIN, SYN, and PSH combine as 0x01 | 0x02 | 0x08 = 0x0B (11 decimal). The breakdown below shows the resulting 1011 pattern.

Running the probe sets all three bits at once, the target again stays silent, and Nmap reports filtered.

nmap -p22 --scanflags 0x0B 192.168.1.9

Wireshark decodes the byte as [FIN, SYN, PSH] on each outbound segment.

FIN + RST + PSH — 0x0D

Swapping SYN for RST gives 0x01 | 0x04 | 0x08 = 0x0D (13 decimal), the 1101 pattern. Pairing RST with FIN and PSH is meaningless to a healthy TCP stack, so the firewall drops it and Nmap reports filtered.

nmap -p22 --scanflags 0x0D 192.168.1.9

The capture resolves the byte to [FIN, RST, PSH], matching the breakdown bit for bit.

FIN + SYN + RST + PSH — 0x0F

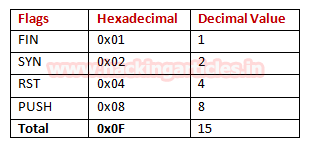

Adding the fourth low-order flag fills the nibble: 0x01 | 0x02 | 0x04 | 0x08 = 0x0F (15 decimal). This is the most anomalous probe of the set, since SYN, RST, and FIN cannot coexist in any legitimate segment. The target offers no reply, and Nmap reports filtered.

nmap -p22 --scanflags 0x0F 192.168.1.9

Wireshark confirms the full low nibble, decoding the byte as [FIN, SYN, RST, PSH] on every probe.

Consolidated Results

The image below consolidates every probe in the study, the byte it placed on the wire, the port targeted, and the state Nmap inferred from the target’s response.

Three patterns stand out. The SYN probe opened a real handshake and revealed an open service; the ACK probe drew a reset that exposed a closed port; and every other single flag and combination landed on filtered, because the firewall silently dropped probes that no legitimate handshake would send. The lesson for an analyst is that –scanflags grants bit-level control of the TCP header, Wireshark verifies that control end to end, and the target’s reaction — a reply, a reset, or silence — reveals both port state and firewall posture.

Mitigation Strategies

The same flag behaviour that an attacker probe is something a defender can lock down. The goal is to deny packets that no legitimate session produces, to drop traffic that falls outside an established connection, and to detect scanning activity before it yields useful information.

Drop illegal and anomalous flag combinations

A host firewall should discard packets whose flag combinations cannot occur in normal TCP, such as a header with no flags, every flag set, or mutually exclusive flags like SYN with FIN or SYN with RST. The iptables rules below drop the exact patterns exercised in this study before they ever reach a service.

• iptables -A INPUT -p tcp –tcp-flags ALL NONE -j DROP
• iptables -A INPUT -p tcp –tcp-flags ALL ALL -j DROP
• iptables -A INPUT -p tcp –tcp-flags ALL FIN,PSH,URG -j DROP
• iptables -A INPUT -p tcp –tcp-flags SYN,FIN SYN,FIN -j DROP
• iptables -A INPUT -p tcp –tcp-flags SYN,RST SYN,RST -j DROPEnforce stateful filtering



A stateful firewall tracks connection state and rejects segments that arrive outside a known session, which neutralises bare FIN, RST, PSH, and ACK probes regardless of their exact flag pattern. Dropping packets in the INVALID connection state is a compact way to achieve this.

iptables -A INPUT -m conntrack –ctstate INVALID -j DROP

Detect, rate-limit, and reduce exposure

Layered controls catch what filtering alone cannot. An intrusion-detection system such as Snort or Suricata can alert on the anomalous flag patterns and port sweeps shown here, while connection rate-limiting and tools like fail2ban slow an attacker who probes repeatedly. Finally, reducing the attack surface remains the most durable defence: close unused ports, expose sensitive services such as SSH only to trusted networks or through a bastion host, keep the TCP stack and services patched, and log dropped packets so that scanning patterns surface in monitoring.

Conclusion

Crafting TCP probes by hand turns Nmap from a fixed‑recipe scanner into a precise packet builder. By setting the control‑bit field one bit at a time and combining bits into bytes up to 0x0F, this study showed how a target distinguishes an open port from a closed or filtered one, and how Wireshark confirms each hexadecimal value maps to the intended flags. The target’s responses — a SYN that opened a service, an ACK that provoked a revealing reset, and a firewall that silently swallowed anomalous combinations — trace a direct line from packet contents to security posture. That same understanding cuts both ways: defenders who drop illegal flag combinations, enforce stateful filtering, and monitor for scan patterns close the very gaps that –scanflags exploits. With a single byte standing between an analyst and 256 possible flag combinations, fluency in the TCP control field remains essential for attackers and defenders alike.
