Forensic Data Carving using Foremost

Foremost carves data from disk image files; it serves as an extremely useful tool and is very easy to use.

For the purpose of this article, we used an Ubuntu disk image file, and we repeated the process twice. The purpose of doing so was to see if Foremost can carve data out of incomplete disk images as well. We have used Kali Linux but if you want you can install Foremost on pretty much any distro of Linux.

Starting Foremost in Kali Linux

Here’s how it was done:

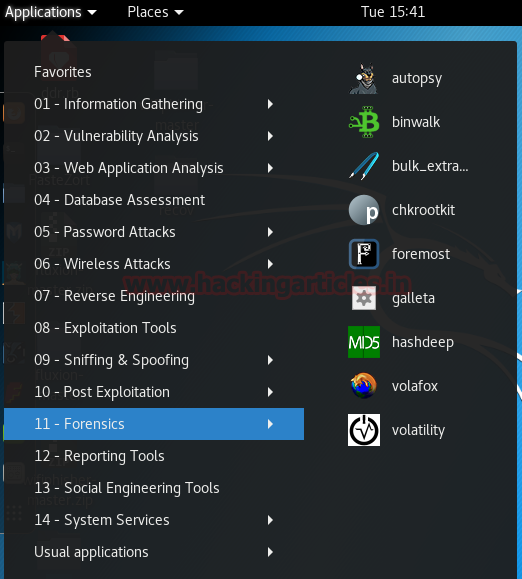

Navigate to the Applications menu in Kali, Forensics is option 11. The fifth option from top in the Forensics menu is Foremost. Click on it and let’s get to carving some data!!

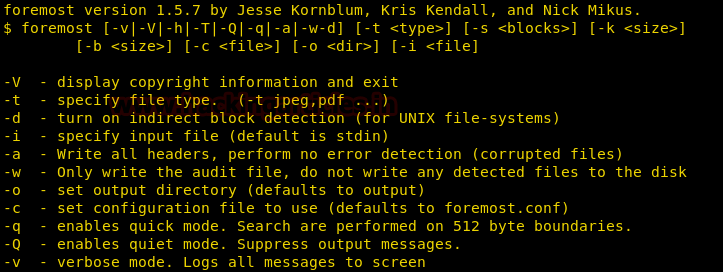

Foremost starts and shows you the options you have at your disposal.

In order to keep things simple, you first want to navigate to the Desktop using “cd Desktop”.

Next, make a folder on the desktop by the name of “recov”. This isn’t a mandatory step; it just makes things easier to access by creating a new folder to store the carved data.

Creating the Disk Image

We will be dealing with the disk image of a flash drive partition, so let’s make one using the “dd” command. The dd command can be used to copy files and with the option of converting the data format in the process.

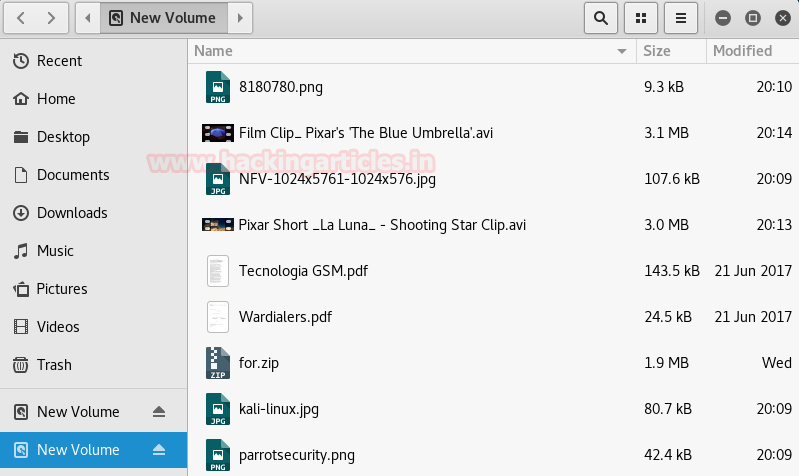

In the interest of thoroughness we have copied .docx, .jpeg, .png, .zip, .pdf and .avi files onto the partition from which we will be making our disk image.

Now let’s make a disk image.

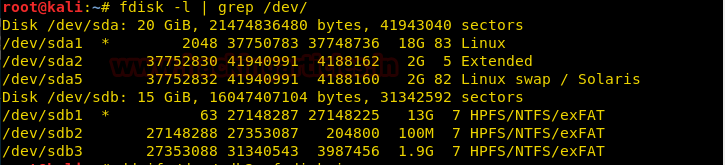

In a new terminal window, type the following “fdisk –l | grep /dev/”. This command will show you the disk partitions available to you without any clutter.

The partition we are concerned with is /dev/sbd2. The system specially allocated 10 MB of space so that the imaging process is quick.

The command to create the disk image is “dd if=/dev/sdb2 of=disk.img”. Here, “dd” is the utility we are using, “if=” is to denote the input destination and “of=” is to denote the output destination and name of the image file we are creating.

We have not specified any output destination, but, just the name for the image file. The image file will be created in the Home directory by default. Copy the disk image file from here and place it on the desktop.

Carving Files with Foremost

Let’s navigate back to the terminal where we have Foremost running and start the file carving process.

This disk image file will be carved for .jpeg, .png, .zip, .pdf and .avi  file formats. We will not be instructing Foremost to carve the .docx but, since one exists in the .zip we have placed inside the disk image, it will do so automatically.

Type the following “foremost -t jpeg,png,zip,pdf,avi -i disk.img -o recov –v”.

To break this down “-t” is setting the file types we want to carve out of the disk image, here those are .jpeg and .png.

  • The “-i” option specifies the input file, the “disk.img” that resides on the desktop.
  • The “-o” option instructs Foremost where we want to store the carved files; we created the “recov” folder on the desktop for that purpose.
  • The “-v” option instructs Foremost to log all the messages that appear on screen as the file carves into a text file in the output folder (recov) as an audit report.

Analyzing the Carving Output

That’s all it takes for Foremost to start digging into the disk image. The process looks like this.

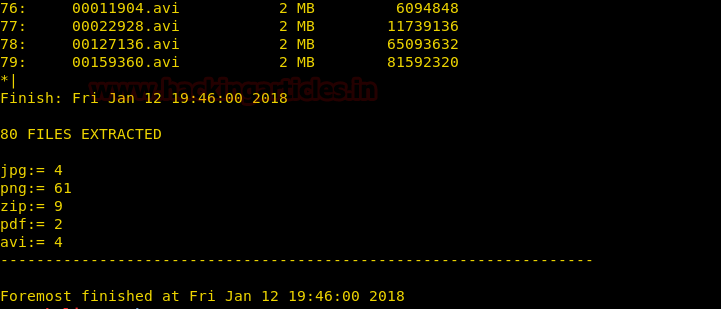

Once Foremost finishes carving the disk image, it shows you the result: that is, how many of which file types it carved. All it took was a second to get the job done.

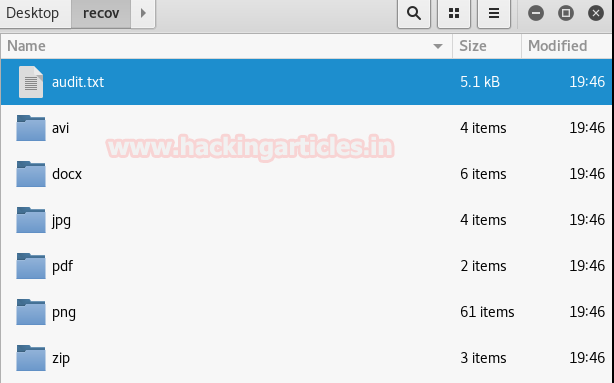

Now open the output (recov) folder, and you will see an audit report and six folders named by the file types we invoked Foremost to carve for us.

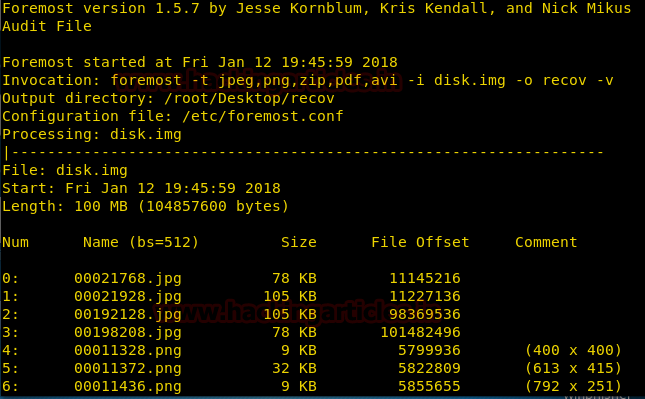

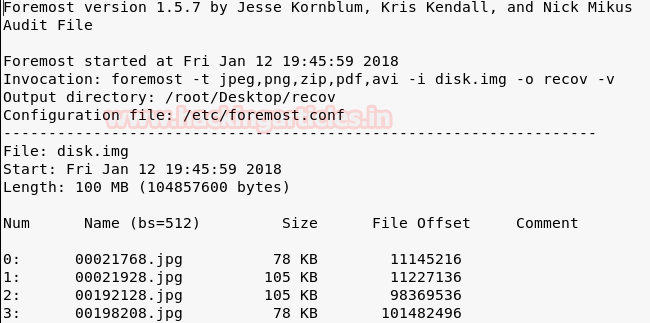

First, the audit report. It provides us with the particulars of the scan, which file types it carved, from which image file, the size of the image file, where it located the image file, where it located the output folder, etc.

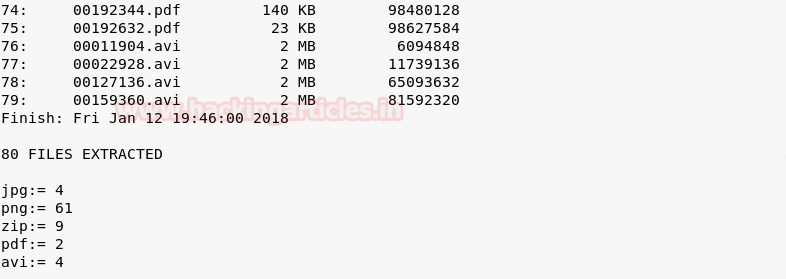

The end of the report contains shows the total files extracted with more particulars.

We will open one file from the jpg folder to see what we have.

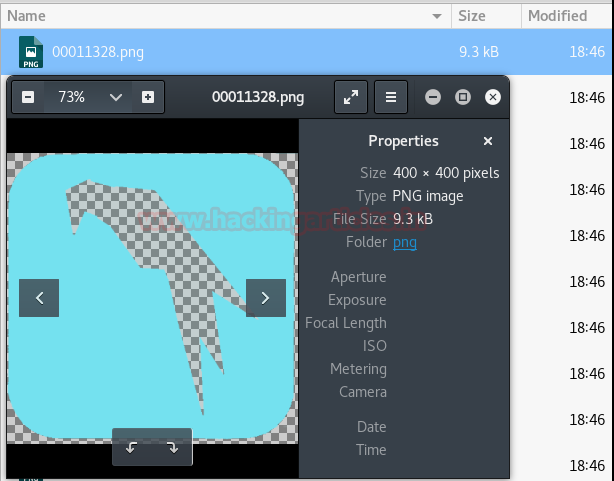

One from the png folder.

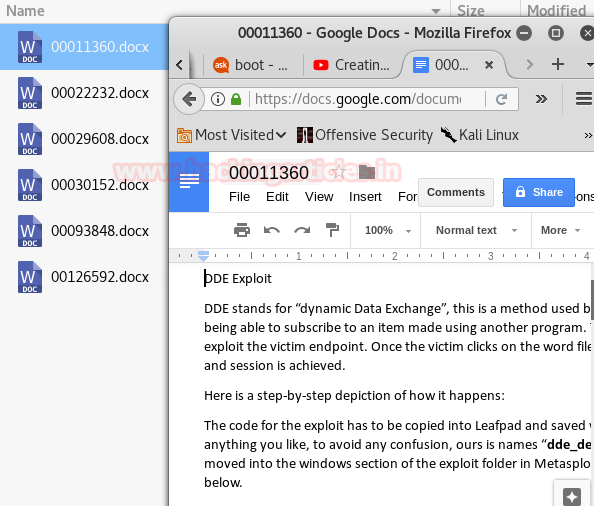

Inside the docx folder.

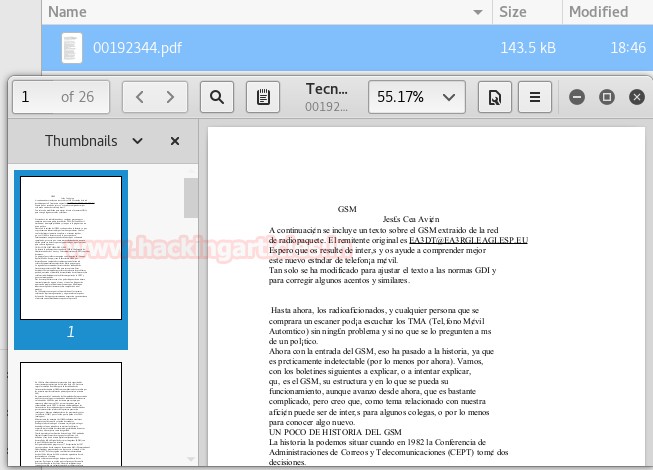

Inside the pdf folder.

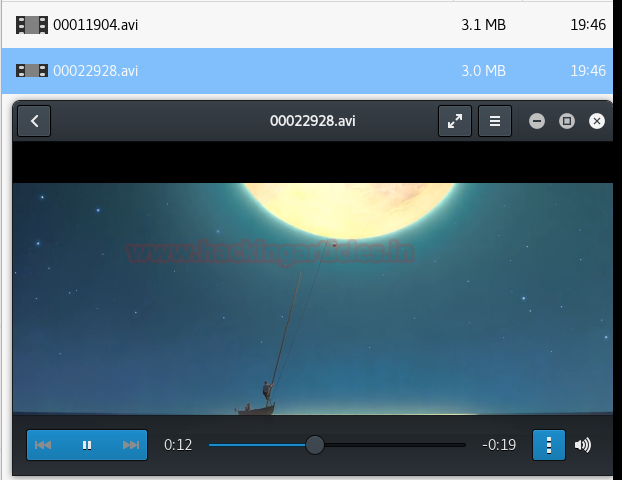

Now the avi folder

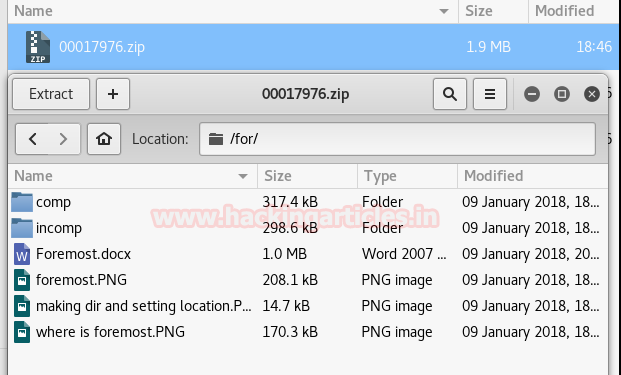

And finally the zip folder.

Conclusion

As you can see, Foremost was successfully able to carve files out of the disk image file and give us the results. Let’s put it to the test.

This a very interesting tool and its simplicity is what makes it stand out.

The only issue I could see with this is that the system does not recover the file names, which can make the search process very tedious unless you provide the option of automation and a frame of reference.

That being said, in forensics, just recovering the files without opening or extracting the disk image itself provides you a huge advantage. I say this because if you extract or open the disk image, you never know what might be waiting for you inside, which grants you more control over the entire investigation process. Enjoy using this tool.

Have fun and stay ethical.
