How to Setup VyOS (Virtual Router Pentest Lab)

VyOS is a Linux-based network operating system that provides software-based network routing, firewall, and VPN functionality.  Its configuration syntax and command-line interface are loosely derived from Juniper JUNOS as modeled by the XORP project.

First Download Vyos iso image from here

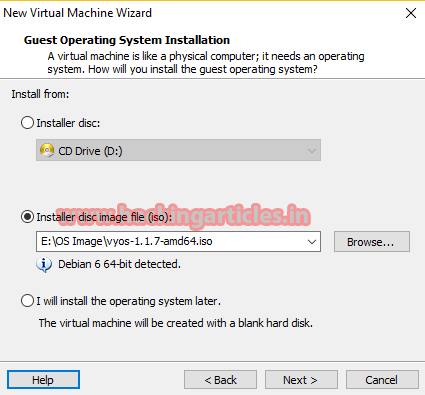

Open VMWARE tool, create a new virtual machine. Select Installer disc image file and select the OS image of vyos and click on next.

Enter your virtual machine name and location. Click next.

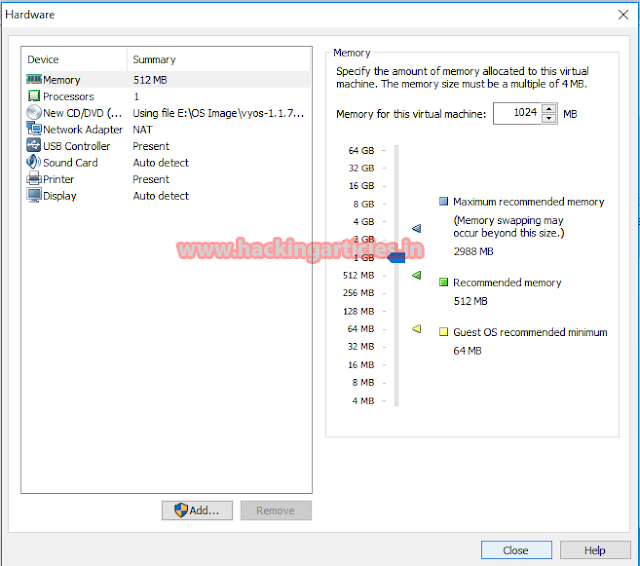

Set Ram up to 1 GB for vyos and click to the network adapter

Next, we are choosing our first network adapter. Connect it to the Bridge Adapter and click on close.

Then click on finish.

Now the installation process will start automatically. It takes a few seconds for the VM to boot and VyOS to load.

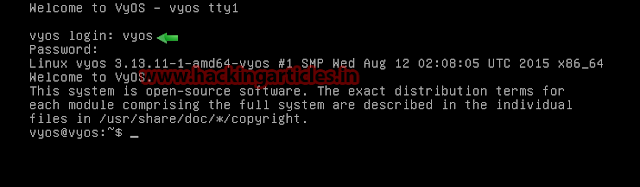

After boot screen hit enter and login to vyos using the following credentials:

Username: vyos

Password: vyos

Installation of Vyos on local disk. In order to do that simply execute the command: install image and press enter

Now type yes and press enter in next option Select auto partition press enter

In next option type yes to continue press enter

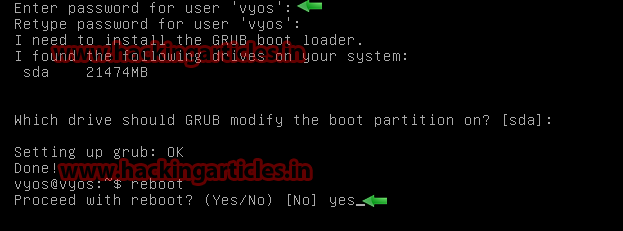

After the installation is complete Issue the reboot command Again type: yes press enter

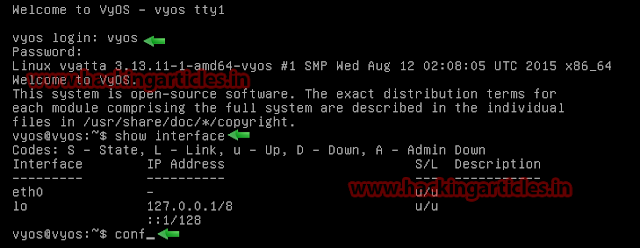

Login again to vyos and we will start with setting

Now we will check network interfaces using show interfaces command

Now Enter configuration mode by typing “conf” and have a look at the current interfaces:

After you made some changes, you need to enter the “commit” and “save” commands.

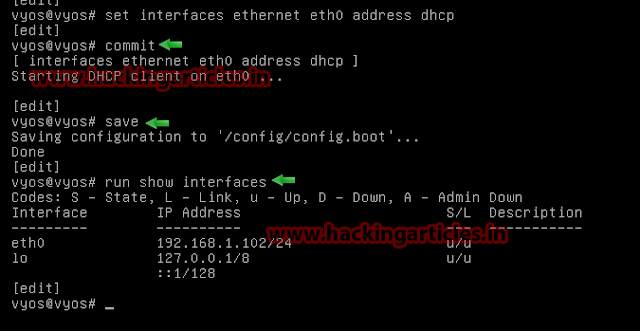

Now we will setup network interfaces:

Now again you need to enter the “commit” and “save” commands. Now we will check network interfaces using run show interfaces command.

Now before we are able to connect to our router with SSH, we will enable SSH In order to do it execute the following commands:

Now before we are able to connect to our router with TELNET, we need to enable that. To do so, issue the following commands

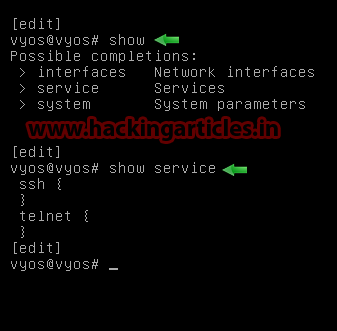

To check all enable service type the following command
