DOS Attack Penetration Testing (Part 1)

Hello friends! Today we are going to describe DOS/DDOS attack, here we will cover What is dos attack; How one can lunch Dos attack on any targeted network and What will its outcome and How victim can predict for Dos attack for his network.

Requirement

Attacker machine: Kali Linux

Victim machine: Ubuntu

Optional: Wireshark (we have added it in our tutorial so that we can clearly confirm all incoming and outgoing packet of the network)

What is DOS/DDOS Attack

From Wikipedia

denial-of-service attack (DoS attack) is a cyber-attack where the attacker looks for to make a machine or network resource unavailable to its deliberated users by temporarily or indefinitely services of disturbing a host connected to the Internet. Denial of service is usually accomplished by flooding the targeted machine or resource with excessive requests in an attempt to overload systems and prevent some or all legitimate requests from being fulfilled.

In a distributed denial-of-service attack (DDoS attack), the incoming traffic flooding the victim originates from many different sources. A DoS or DDoS attack is analogous to a group of people crowding the entry door or gate to a shop or business, and not letting legitimate parties enter into the shop or business, disrupting normal operations.

Basically, the attacker machine either himself sends infinite request packets on the target machine without waiting for reply packet form target network or uses bots (host machines) to send request packet on the target machine. Let study more above it using given below image, here you can observe 3 Phases where Attacker machine is placed at the Top while Middle part holds Host machine which is control by attacker machine and at Bottom, you can see Target machine.

From given below image you can observe that the attacker machine want to send ICMP echo request packet on the target machine with help of bots so this will increase the number of attacker and number of request packet on the target network and cause traffic Flood. Now at that time, the targeted network gets overloaded and hence lead some service down then prevent some or all legitimate requests from being fulfilled.

DOS/DDOS Categories

  • Volume Based Attack: The attack’s objective is to flood the bandwidth of the target networks by sending ICMP or UDP or TCP traffic in per bits per second.
  • Protocol-Based Attack: This kind of attack focus actual target server resources by sending packets such TCP SYN flood, Ping of death or Fragmented packets attack per second to demolish the target and make it unresponsive to other legitimate requests.
  • Application Layer Attack: Rather than attempt to demolish the whole server, an attacker will focus their attack on running applications by sending request per second, for example, attacking WordPress, Joomla web server by infinite request on apache to make it unresponsive to other legitimate requests.



How to Perform a DOS Attack?

If you are aware of OSI 7 layers model then you may know that whenever we send a request packet to the server for accessing any particular service, for example, browsing Google.com then this process executes by passing through 7 layers of OSI model and at last we are able to access Google.com on the browser.

Now suppose port 80 is open in target’s network (192.168.1.107) for accessing its HTTP services so that you can open their website through your browser and get the information available in those web pages. So basically attacker plan to slow down HTTP service for another user who wants to interact with target machine through port 80 as result server will not able to reply the other legitimate requests and this will consider as Protocol Dos attack.

An attacker can use any tool for DOS attack but we are using Hping3 for attacking to generate traffic flood for the target’s network to slow down its HTTP service for other users.

hping3 -F --flood -p 80 192.168.1.107

Above command will send endless request packet per second on port 80 of the target’s network.

What will the Effect of Dos Attack?

As we had described that any kind of Dos attack will affect the server services to their users and clients in establishing a connection with it. Here also when we had sent infinite request packet on port 80 of target’s network then it should make HTTP service unable for legitimate users.

So now if I will explore target IP on your browser for accessing their web site as a legitimate user then you can observe that the browser is unable to connect with the server for HTTP services as shown in given below image.

How to Predict DOS Attack in Our Network?

Configure IDS in your network which will monitor the incoming network traffic on your network and generates the alert for suspicious traffic to system administrators. We had install Snort on the system (ubuntu: 192.168.1.107) as NIDS (Network Intrusion Detection System) kindly read our previous both articles related to Snort Installation (Manually or using apt-respiratory)and its rule configuration to enable it as IDS for your network.

TCP SYN Flood

Execute given below command in ubuntu’s terminal to open snort local rule file in text editor.

sudo gedit /etc/snort/rules/local.rules

alert tcp any any -> 192.168.1.107 any ( msg:"SYN Flood Dos"; flags:S; sid:1000006; )

Above rule will monitor incoming TCP-SYN packets on 192.168.1.107 by generating alert for it as “SYN Flood Dos”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Now test the above rule by sending infinite SYN packet using the attacker’s machine. Open the terminal and enter msfconsole for Metasploit framework and execute given below command to run the syn flood exploit.

This exploit will send countless syn packets on the target’s network to demolish its services.

use auxiliary/dos/tcp/synflood
msf auxiliary(synflood) > set rhost 192.168.1.107 (target IP)
msf auxiliary(synflood) > set shost 192.168.1.105 (attacker’s IP )
msf auxiliary(synflood) > exploit

We have set shost for attacker’s IP only for tutorial else it was optional or you can address any random IP of your network, now can see SYN flood has been launched on port 80 by default it is considered as Protocol Based Dos Attack as described above.

As I had declaimed above why we are involving Wireshark in this tutorial so that you can clearly see the packet sends from an attacker network to targets network. Hence in given below image, you can notice endless SYN packet has sent on target’s network on port 80.

Come back to over your target machine where you will notice that snort is exactly in same way capturing all incoming traffic here you will observe that it is generating alerts for “SYN Flood Dos”.  Hence you can block the attacker’s IP (192.168.1.105) to protect your network from discard all further coming packets toward your network.

UDP Flood

Now again open local rule files for generating alert for UDP flood Dos attack and enter given below rule and save the file.

alert udp any any -> 192.168.1.107 any (msg: "UDP Flood Dos"; sid:1000001; )

The above rule will monitor incoming UDP packets on 192.168.1.107 by generating alert for it as “UDP Flood Dos”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

We are using Hping3 for attacking to generate traffic flood for target’s network to slow down its UDP service for other users it is considered as Volume Based Dos Attack as described above.

hping3 --udp --flood -p 80 192.168.1.107

Above command will send endless bits packet per second on port 80 of the target’s network.

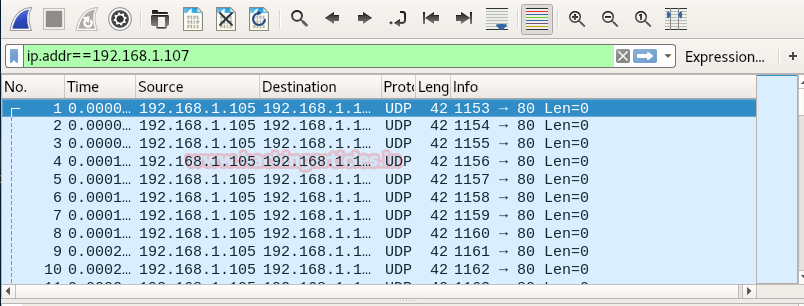

From given below image you can observe Wireshark has captured UDP packets from 192.168.1.105 to 192.168.1.107

Come back to over your target machine where snort is capturing all incoming traffic here you will observe that it is generating alert for UDP Flood Dos attack. Hence you can block the attacker’s IP to protect your network from further scanning.

SYN FIN Flood

By default snort capture SYN FIN Flood packets turn on IDS mode using given below command.

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Again we are using Hping3 for attacking to generate traffic flood for the target’s network to slow down network services for other users.

hping3 -SF --flood -p 80 192.168.1.107

Above command will send endless bits packet per second on port 80 of the target’s network.

Hence in given below image, you can notice endless SYN-FIN packet has sent from 192.168.1.105 to 192.168.1.107 on port 80.

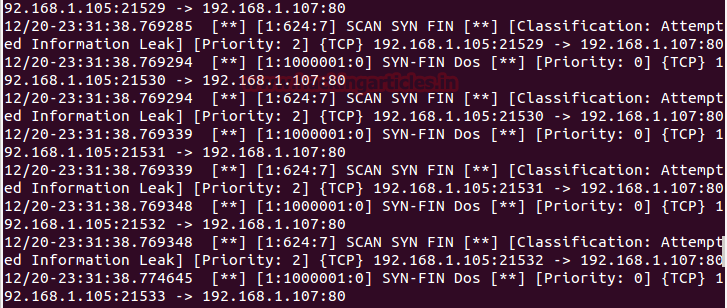

Come back to over your target machine where you will notice that snort is exactly in same way capturing all incoming traffic here you will observe that it is generating alerts for “SYN-FIN Flood Dos”.  Hence you can block the attacker’s IP (192.168.1.105) to protect your network from discard all further coming packets toward your network.

PUSH ACK Flood

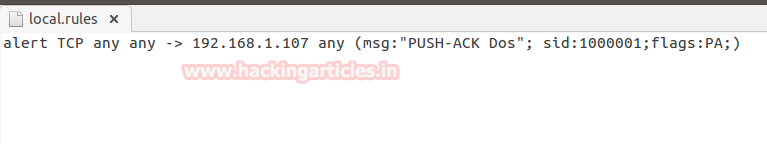

Now again open local rule files for generating alert for some combination of flags such as PSH-ACK packets and enter given below rule and save the file.

alert tcp any any -> 192.168.1.107 any (msg: "PUSH-ACK Flood Dos"; sid:1000001; flags:PA; )

The above rule will monitor incoming TCP-PSH/ACK packets on 192.168.1.107 by generating alert for it as “PUSH-ACK Flood Dos”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Again we are using Hping3 for attacking to generate traffic flood for the target’s network to slow down network services for other users.

hping3 -PA --flood -p 80 192.168.1.107

Above command will send endless bits packet per second on port 80 of the target’s network.

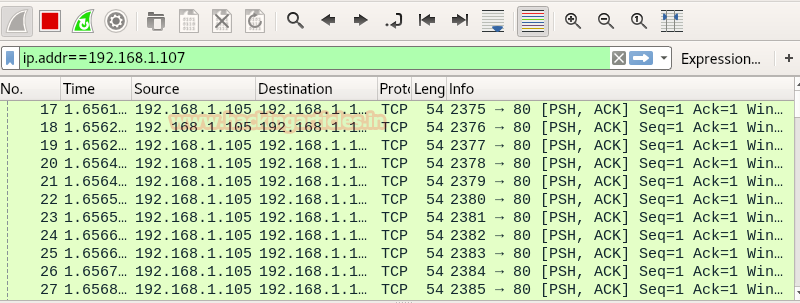

Hence in given below image, you can notice endless PSH-ACK packet has sent from 192.168.1.105 to 192.168.1.107 on port 80.

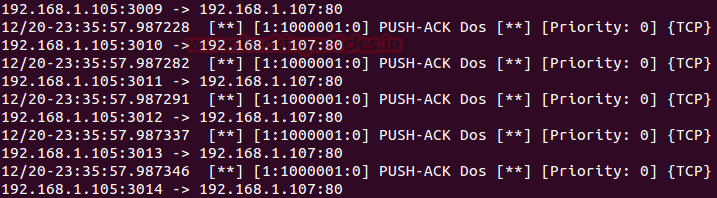

Come back to over your target machine where you will notice that snort is exactly in same way capturing all incoming traffic here you will observe that it is generating alerts for “PUSH-ACK Flood Dos”.  Hence you can block the attacker’s IP (192.168.1.105) to protect your network from discard all further coming packets toward your network.

Reset Flood

Now again open local rule files for generating alert for Reset flag packets and enter given below rule and save the file.

alert tcp any any -> 192.168.1.107 any (msg: "Reset Dos"; sid:1000001; flags:R; )

Above rule will monitor incoming TCP-RST packets on 192.168.1.107 by generating alert for it as “Reset  Dos”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Again we are using Hping3 for attacking to generate traffic flood for the target’s network to slow down network services for other users.

hping3 -R --flood -p 80 192.168.1.107

Above command will send endless bits packet per second on port 80 of the target’s network.

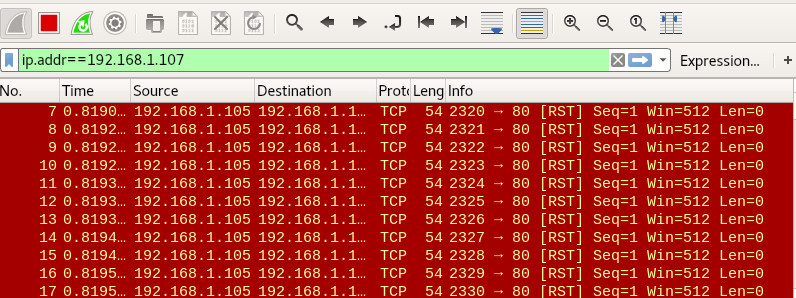

Hence in given below image, you can notice endless RST (Reset) packet has sent from 192.168.1.105 to 192.168.1.107 on port 80.

Come back to over your target machine where you will notice that snort is exactly in same way capturing all incoming traffic here you will observe that it is generating alerts for “Reset Dos”.  Hence you can block the attacker’s IP (192.168.1.105) to protect your network from discard all further coming packets toward your network.

FIN Flood

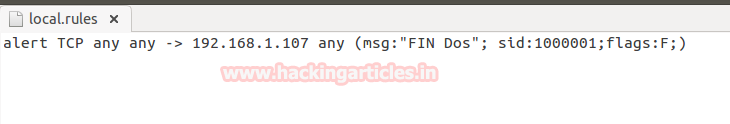

Now again open local rule files for generating alert for Fin flag packets and enter given below rule and save the file.

alert tcp any any -> 192.168.1.107 any (msg: "FIN Dos"; sid:1000001; flags:F; )

The above rule will monitor incoming TCP-RST packets on 192.168.1.107 by generating alert for it as “FIN Dos”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Again we are using Hping3 for attacking to generate traffic flood for the target’s network to slow down network services for other users.

hping3 -F –flood -p 80 192.168.1.107

Above command will send endless bits packet per second on port 80 of the target’s network.

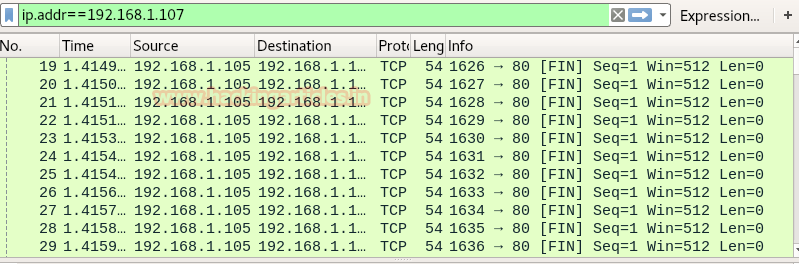

Hence in given below image, you can notice endless FIN (Finished) packet has sent from 192.168.1.105 to 192.168.1.107 on port 80.

Come back to over your target machine where you will notice that snort is exactly in same way capturing all incoming traffic here you will observe that it is generating alerts for “FIN Dos”.  Hence you can block the attacker’s IP (192.168.1.105) to protect your network from discard all further coming packets toward your network.

Smurf Attack

A smurf attack is a DDOS attack in which large numbers of Internet Control Message Protocol packets are used to generate a fake Echo request (ICMP type: 8) containing a spoofed source IP which is actually the target network address. This request packet is then is transmitted to all of the network hosts on the network and then each host sends an ICMP response to the spoofed source address (target IP).  The target’s computer will be flooded with traffic; this can slow down the target’s computer and make it usable for other users.

Now again open local rule files for generating alert for ICMP packets and enter given below rule and save the file.

alert icmp any any -> any any (msg: "Smurf Dos Attack"; sid:1000003;itype:8; )

The above rule will monitor ICMP packets on 192.168.1.103 by generating alert for it as “Smurf Dos Attack”. Now turn on IDS mode of snort by executing given below command in terminal:

sudo snort -A console -q -u snort -g snort -c /etc/snort/snort.conf -i eth0

Again we are using Hping3 for attacking to generate traffic ICMP flood for target’s network to slow down network services for other users.

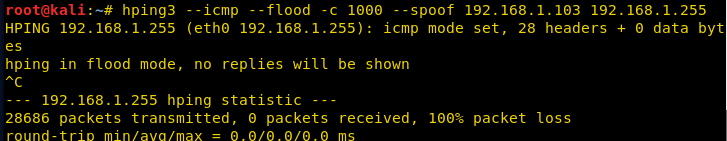

hping3 --icmp --flood -c 1000 --spoof 192.168.1.103 192.168.1.255

Above command will generate fake ICMP echo request packet containing a spoofed source IP: 192.168.1.103 which is basically our victim’s network and this request packet is then is transmitted to host’s network on 192.168.1.255 and then this host sends an ICMP response to the spoofed source address which our victim’s machine in IDS mode.

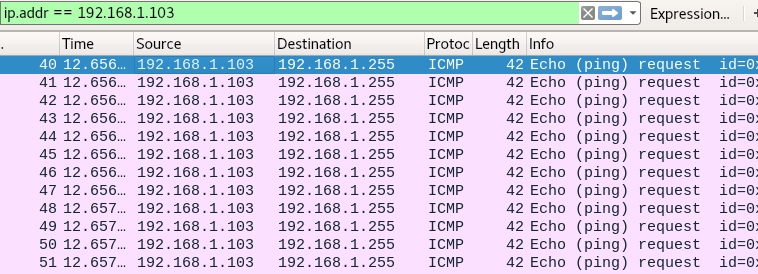

From given below image you can observe it is showing source machine 192.168.1.103 sending icmp echo request packet to 192.168.1.255 but as we know in actual attacker is the main culprit behind this scenario.

Come back to over your target machine where you will notice that snort is capturing all the traffic flowing from 192.168.1.103 to 192.168.1.255 and generating alerts for “Smurf Dos Attack” which means is our machine (victim’s machine) is pinging another host machine of that network. Therefore the network administrator should be attentive with this kind of traffic and must check the system activity and legitimate ICMP request of a packet of his network.
