Penetration Testing

Password Dumping Cheatsheet: Windows

Introduction

Password storing mechanism, ever since the genesis of Windows, has been an angle of interest from security researcher’s point of view and its implementation has often been criticized. However, newer versions of Windows seem to have tried and tackled this problem in many parameters, but we still can’t say that Windows’ password storage mechanism is one of the best out there. In this article, which is the first instalment in a three-article series, we’ll look for various mechanisms by which we can dump passwords of various default applications in Windows if the system is part of a local workgroup. Further parts in the series will focus on domain and active directory. The purpose of this article is to serve as a quick reference guide for all the dumping mechanisms in brief (like a cheat sheet) and detailed article’s reference covering in-depth options will be given for reader’s knowledge. Before beginning, it must be noted that many other tools are also available in the market but we’ll be only covering traditional tools. Here is what all you can find in the article:

Table of Content:

  1. Dumping Windows logon passwords from SAM file
  2. Dumping Windows network, RDP and browser passwords from Windows Credential Manager
  3. Dumping Windows auto-login passwords
  4. Dumping Windows passwords from LSASS process (by creating LSA dump)
  5. Dumping Windows passwords using WDigest protocol
  6. Dumping Windows Wi-Fi passwords using netsh

Dumping Windows logon passwords from SAM file

SAM file – Security Account Manager (SAM) is a database file in Windows XP and above that store’s user’s password. It can be used to authenticate local and remote users. The user passwords are stored in a hashed format in a registry hive either as an LM hash or as an NTLM hash. This is present in %SystemRoot%/system32/config/SAM and LM protocol is disabled in Windows Vista and above because it was proved to be a compromised protocol. Technically, Sam cannot be copied or moved while Windows is running since Windows kernel obtains and keeps an exclusive filesystem lock on the SAM file and will not release the lock till it has been shut down, however, an in-memory copy of the SAM can be dumped using various techniques which are covered in detail in the article

Credential Dumping: SAM

We’ll be using mimikatz to dump SAM file. You can download mimikatz here. Run it as administrator and then the commands are as follows:

privilege::debug
token::elevate
lsadump::sam

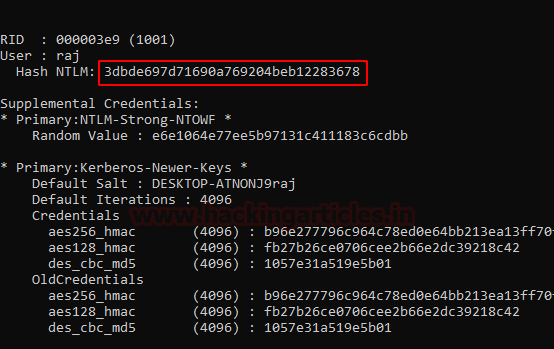

We’ll see that various hashes are now dumped among which our user credentials are given too.

In this case, my user is raj and the windows password is 123. We have successfully obtained an NTLM hash and can crack it using various password cracking tools like john or hashcat.

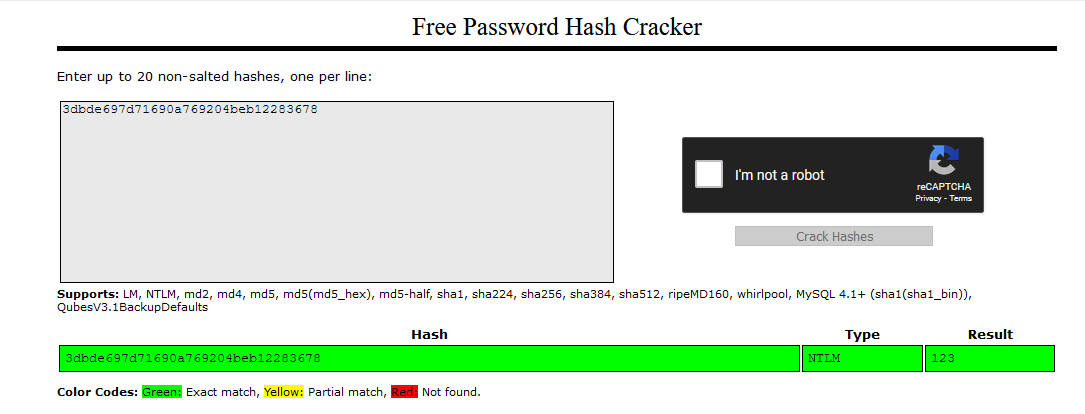

Heading over to crackstation.net’s online NTLM cracker we are successfully able to crack the NTLM hash we just obtained.

It is to be noted that the passwords even after they are hashed, are not stored as it is. They are first double encrypted with the SAM registry hive, with parts of encryption keys in the SYSTEM registry hive.

In Windows 7, RC4 encryption was used which is an obsolete algorithm and hence Mimikatz used to dump hashes in cleartext but ever since Windows 10 Anniversary Update v1607 has been out, Microsoft uses the AES-128 cipher for encryption and hence, this made many password dumping tools obsolete. Many tools were updated to tackle this issue and so did Mimikatz but this had the disadvantage of Mimikatz sometimes not being able to give clear text password dump and rather hashes.

Dumping Windows network, RDP and browser passwords from Windows Credential Manager

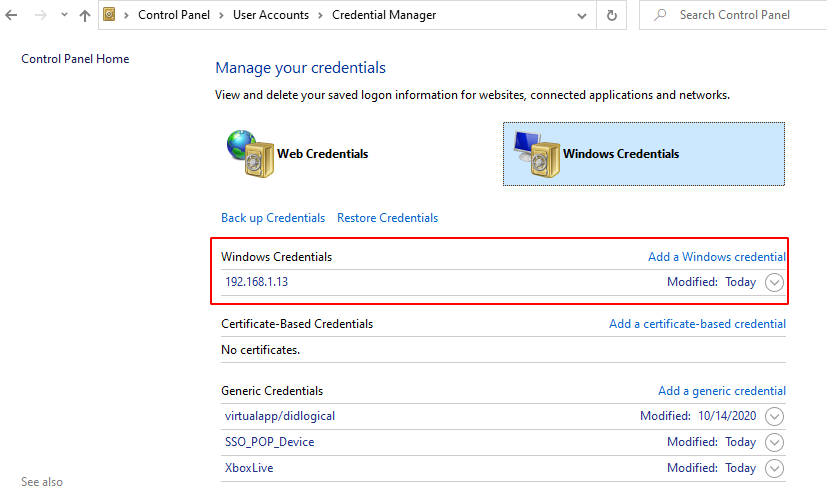

Windows credential manager is the place where Edge and Windows passwords are stored.  Any network protocol, OneDrive, RDP, login etc passwords are stored here. What’s more is that the passwords are easy to crack. You can check out the full article with other tools and methods. but we’ll be sticking to mimikatz here. You can access credential manager in Control Panel→User Accounts→ Credential Manager. Below, you can find that Facebook’s credentials are stored in my system which is visible.

Credential Dumping: Windows Credential Manager

Similarly, logon passwords stored would be visible like this:

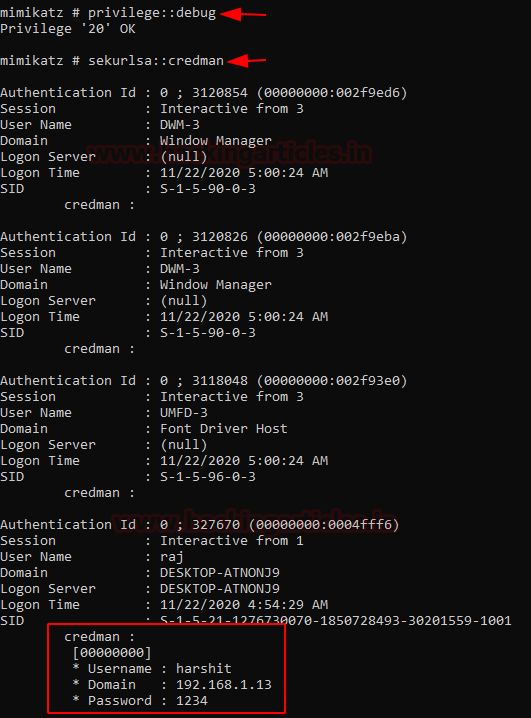

We can dump these credentials with the help of mimikatz command:

privilege::debug
sekurlsa::credman

And just like that, we see a user “harshit” has a password “1234

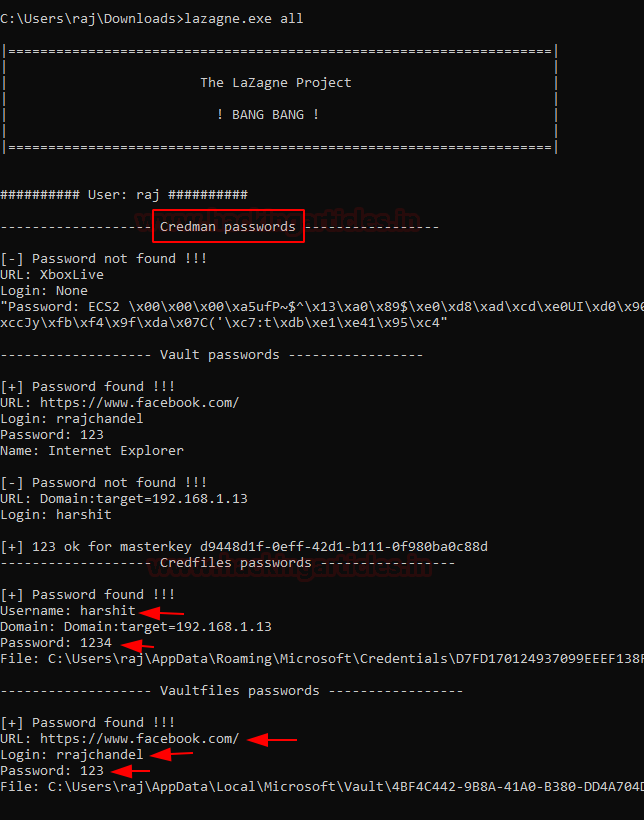

Similarly, we can also use lazagne, another handy tool that you can download from here.

To run lazagne, we type in:

lazagne.exe all

A terminal might also have RDP password stored. To view stored RDP passwords like in the following screenshot:

To dump RDP passwords we’d use NirSoft’s Network Password Recovery which can be downloaded here

And just like that, we have successfully dumped RDP password as well.

Dumping Windows auto-login passwords

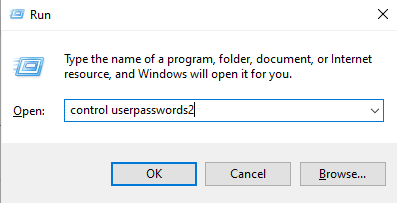

Windows has a special feature of automatic login which enables users to login to the windows system faster. While this feature is handy, one setback is that it can be dumped as well. Let’s first set up auto login in windows and then try to dump it. To reach to the menu which sets this up, we’ll type in the following in run prompt;

control userpasswords2

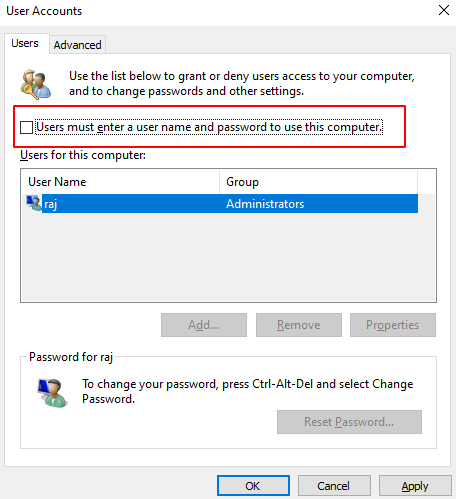

We’ll see the following window upon successful completion of the command:

To enable an account to auto-login, we’ll simply uncheck the first option which is by default checked.

While we click apply, we’ll see a prompt that will ask us for the password once more. After filling it up we’ll restart it to make sure the auto login is now applied.

Now, to dump auto-login password, we’ll be using a small application developed by NirSoft called Network Password Recovery which can be download from here.

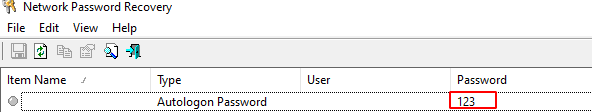

Just run the application and we’re good to go

Note that it has only dumped the credential of the current user because at a time only one user can be auto-logged in.

Dumping Windows passwords from LSASS process

LSASS process: Local Security Authority Subsystem Service is a process in  Microsoft Windows operating systems that is responsible for enforcing the security policy on the system. It verifies users logging on to a Windows computer or server, handles password changes, and creates access tokens. It also writes to the Windows Security Log. When a user attempts to log on locally to the system by entering username and password in the logon dialog box, the logon process invokes the LSA, which passes the user’s credentials to the Security Accounts Manager (SAM), which manages the account information stored in the local SAM database.

The SAM compares the user’s credentials with the account information in the SAM database to determine whether the user is authorized to access the system. If it finds the user account information in the SAM database, the SAM authenticates the user by creating a logon session and returning the security identifier (SID) of the user and the SIDs of global groups of which the user is a member to the LSA.

The LSA then grants the user an access token that contains the user’s individual and group SIDs and their rights; these enable the user to access resources for which he or she has permissions.

What’s interesting is that LSA can be dumped and passwords can be retrieved from a current session. To demonstrate this we first will learn how to create an LSA dump manually.

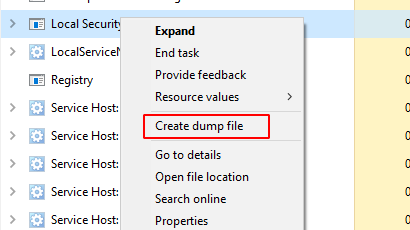

Go to task manager and find lsass.exe file and right-click to create a dump file.

Credential Dumping: Local Security Authority (LSA|LSASS.EXE)

Store this dump file in any location. Currently, we stored it in Temp directory but while we run the command, we’ll copy it in C:\users\raj\Desktop\lsass.DMP

Now, we’ll fire up Mimikatz and type in the following commands:

privilege::debug
sekurlsa::minidump C:\Users\raj\Desktop\lsass.DMP
sekurlsa::logonpasswords

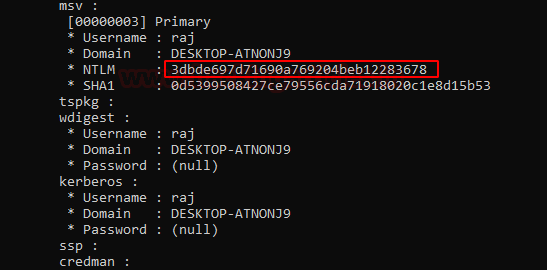

And sure enough we see a hashed password being dumped from the LSA dump file

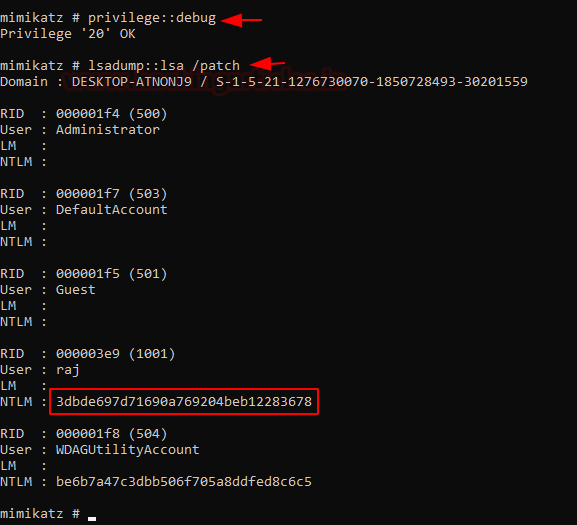

Another method to dump hashes from LSA is the patch method. To perform this, we type in the following commands:

privilege::debug
lsadump::lsa /patch

This hash is the same as previously obtained in method 1. Hence, the password is 123.

Dumping Windows passwords using WDigest protocol

WDigest: It is a digest authentication challenge/response protocol that was primarily used in Windows Server 2003 for LDAP and web-based authentication. It utilized HTTP and SASL exchange to authenticate. It worked as follows:

Client→(requests access)→Authentication Server

Authentication Server→(challenges)→ Client

Client→(encrypts its reponse with key derived from password)→ Authenticating Server

Authenticating Server→ (compares response to a stored response)→ Determines if client has correct password or not

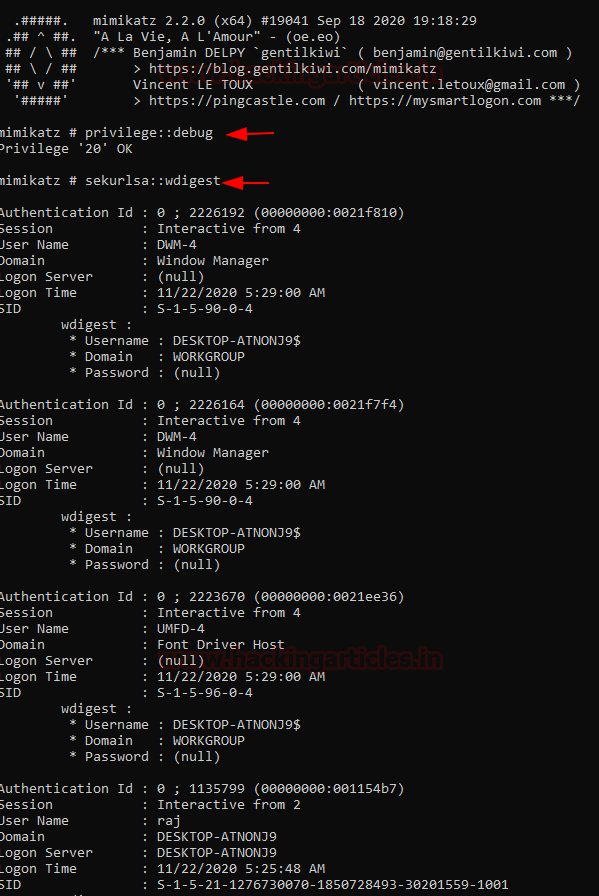

To dump passwords using this method fire up Mimikatz as administrator and type in following commands:

privilege::debug
sekurlsa::wdigest

It is to be noted that WDigest used to be enabled in Windows 7 and is by default disabled in Windows 10 but is not removed. So, to perform this practical on Windows 10 machine we’ll first have to enable WDigest. We can do so by following two methods:

Command-line method:

reg add HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\WDigest /v UseLogonCredential /t REG_DWORD /d 1
gpupdate /force

Manual Method:

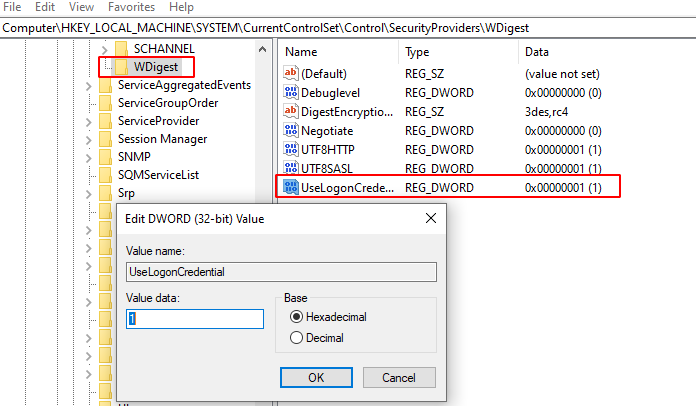

To do this, we’ll have to traverse to the following path in our registry hive:

HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\Wdigest

Then, right-click→new→>add D-word→ name it: UseLogonCredential

Then modify the key and set its value as 1

After this, it is absolutely essential to update group policy:

gpupdate /force

Restart your PC now.

After the successful restart, upon running Mimikatz and the following commands we’d see a different result:

privilege::debug
sekurlsa::wdigest

Dumping Windows Wi-Fi passwords using netsh

All the wireless passwords with their respective SSID are stored in an XML file in the location:

C:\ProgramData\Microsoft\Wlansvc\Profiles\Interfaces\***

netsh: It is a command-line scripting utility that allows you to display or modify the network configuration of a computer that is currently running. Netsh commands can be run by typing commands at the netsh prompt and they can be used in batch files or scripts. Wireless Password can be dumped using various techniques which are covered in detail in the article

Credential Dumping: Wireless

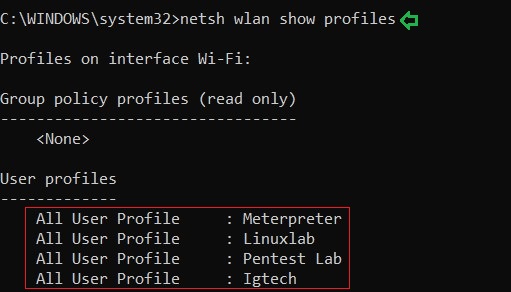

To get the list of the SSIDs that the device has been connected to use the following command:

netsh wlan show profiles

And as a result of the above command, you can see the names of the Wi-Fi networks that the system was connected to in the past or present such as Meterpreter, Linuxlab, etc. The same has been demonstrated in the image above.

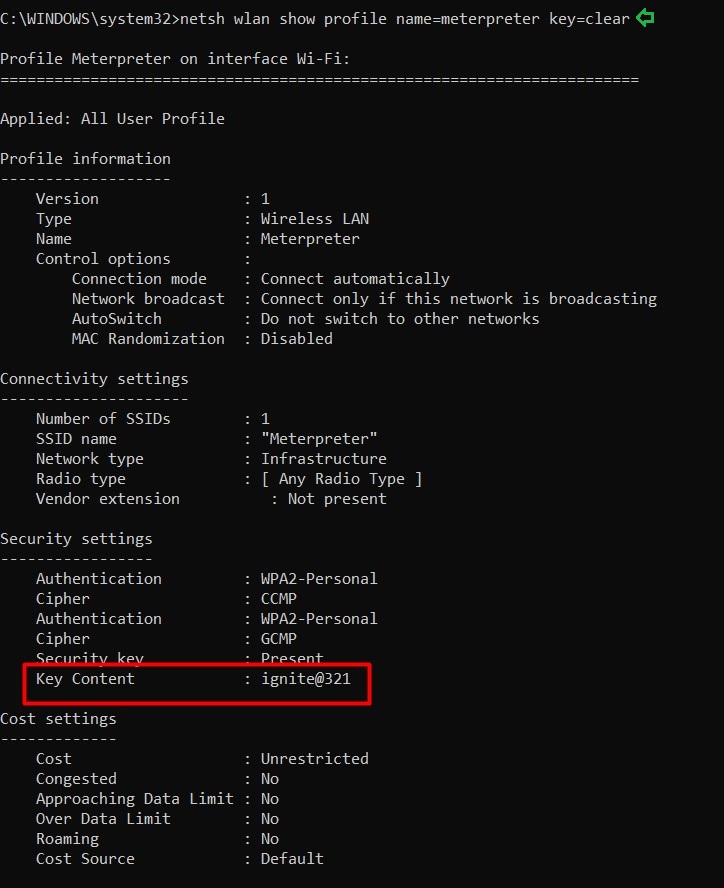

Further, to know the passwords of any one of the mentioned SSIDs use the following command :

netsh wlan show profile name=<SSID Name> key=clear

And just like it is shown in the image above, the result of the above command will give you the password

Conclusion

In this article, we demonstrated credential dumping methods of various default files/ directories present in Windows that contains passwords stored of many services in Windows when the system is part of a local workgroup. Next article would demonstrate to further dump passwords from a domain. Thanks for reading.
