Nmap for Pentester: Timing Scan
In this article we are going to scan the target machine with normal Nmap scan along with the Timing template and the time between packets can be confirmed by analysis of Nmap traffic through Wireshark.
Timing template in the nmap is defined by –T<0-5> having -T0 as the slowest and –T5 as the fastest. By default, all nmap scans run on –T3 timing template. Timing template in Nmap is used to optimize and improve the quality and performance of the scan to get desired results.
Let’s start!!
Nmap Insane (-T5) Scan
This template is used for sending packets insanely fast and waits only 0.3 seconds for the response. The time difference between the two packets sent is up to 5 milliseconds. This timing template makes the scan superfast but the accuracy is sacrificed sometimes. Nmap gives-up on a host if it couldn’t complete the scan within 15 minutes. Other than that, -T5 should be used only on a fast network and high-end systems as sending packets this fast can affect the working of the network or system and can result in system failure.
For using timing template use the attribute –T<0-5> after Nmap while scanning a target network
nmap -T5 -p21-25 192.168.1.104
Here are the packets sent to the target IP are sent by a maximum difference of 5 milliseconds or 0.005 seconds
Packet 1 has Arrival Time of 04:41:04.557153433
Packet 2 has Arrival Time of 04:41:04.557225304
The difference between the arrival time of Packet 1 and Packet 2 is about 0.07 milliseconds.
Nmap Aggressive (-T4) Scan
This template is used for sending packets very fast and waits only 1.25 seconds for the response. The time difference between the two packets sent is up to 10 milliseconds. Nmap official documentation recommends using –T4 for “reasonably modern and reliable networks”.
nmap -T4 –p21-25 192.168.1.104
Here are the packets sent to the target IP are sent by a maximum difference of 5 milliseconds or 0.005 seconds

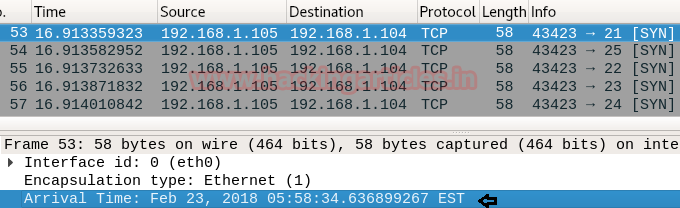

Packet 1 has Arrival Time of 05:58:34.636899267
Packet 2 has Arrival Time of 05:58:34.637122896
The difference between the arrival time of Packet 1 and Packet 2 is about 0.2 milliseconds.
Nmap Normal (-T3) Scan
This is the default nmap timing template which is used when -T argument is not specified.
nmap -T3 -p21-25 192.168.1.104

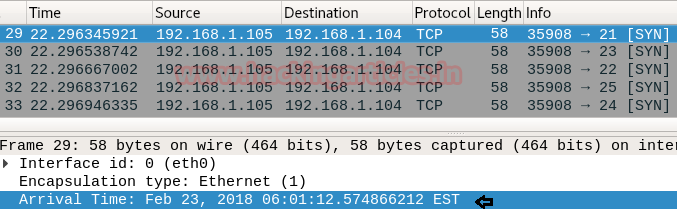

Packet 1 has Arrival Time of 06:01:12.574866212
Packet 1 has Arrival Time of 06:01:12.575059033
The difference between the arrival time of Packet 1 and Packet 2 is about 0.1 milliseconds.
Nmap Polite (-T2) Scan
This template is used for sending packets quickly then –T0 and –T1 but still slower than a normal scan. The time difference between the two packets sent is 0.4 seconds.

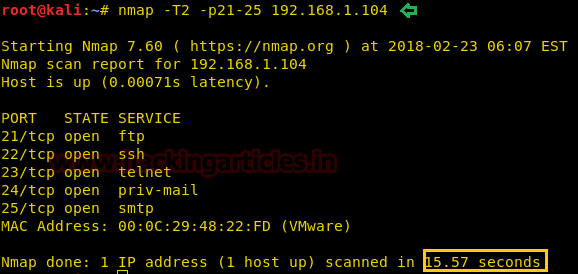

nmap -T2 -p21-25 192.168.1.104
Packet 1 has Arrival Time of 06:07:38.139876513
Packet 2 has Arrival Time of 06:01:38.540686453
Nmap Sneaky (-T1) Scan
This template is used for sending packets quickly but still slower than a normal scan. The time difference between the two packets sent is 15 seconds.
nmap -T1 -p21-25 192.168.1.104

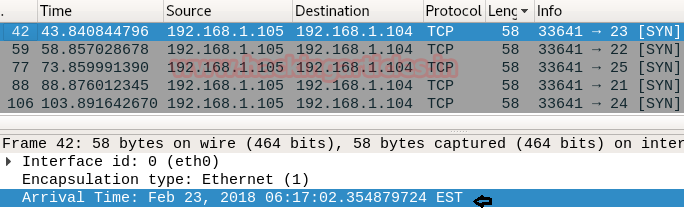

Packet 1 has Arrival Time of 06:17:02.354879724
Packet 2 has Arrival Time of 06:17:17.371063606
The difference between the arrival time of Packet 1 and Packet 2 is about 15 seconds.
Nmap Paranoid (-T0) Scan
This template is used for sending packets very slowly as only one port is scanned at a time. The time difference between the two packets sent is 5 minutes.

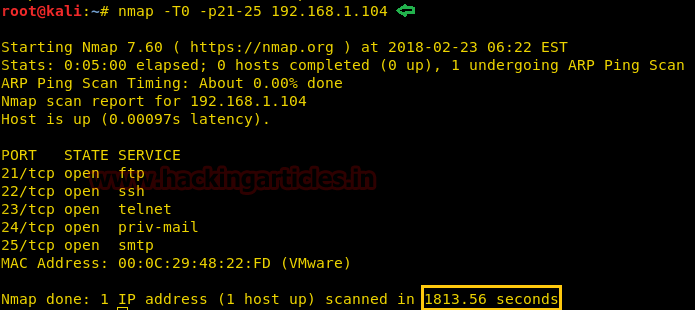

nmap -T0 -p21-25 192.168.1.104

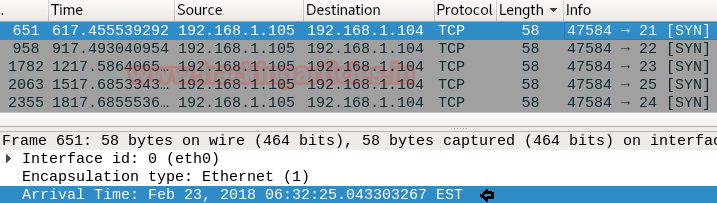

Packet 1 has Arrival Time of 06:32:25.043303267
Packet 2 has Arrival Time of 06:37:25.080804929
The difference between the arrival time of Packet 1 and Packet 2 is about 5 minutes.
Evading Time-Based Firewall rules using timing templates
Block Insane T5 scan
Even though we can speed up the scan by –T5 and –T4 templates, there are chances that the target system is using some kind of firewall rules to secure itself. Here are some examples of the firewall rules and methods to bypass them.
This rule will block TCP packets from an IP address if the packet count goes more than 1. In other words, only the first packet will be responded from an IP address in 1 second.
sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --set sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --update --seconds 1 --hitcount 1 -j DROP
If you’re scanning more than 1 port on a target system having above rule, the result will not be as desired. Like if we use -T5 or -T4 in nmap scan, the time difference between packets is very much less than 1 second so if we scan five ports at a time it will show one as open/closed and others as filtered. But -T5 has also –max-retries set to 2 means it will retry to get the reply from ports 2 more times hence there will be 3 out 5 ports with accurate open/close status and the rest 2 with the filtered status
nmap -T5 -p21-25 192.168.1.104

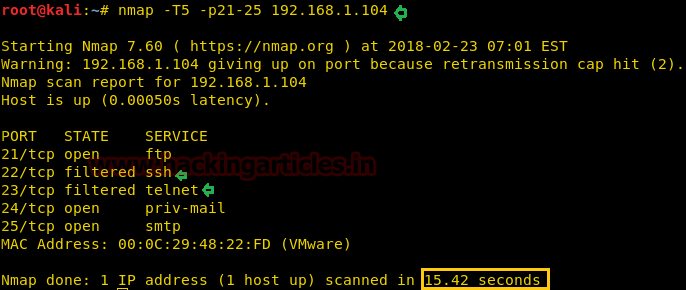

From given below image you can observe that it has shown 3 ports are open and 2 ports are filtered.
The packet transfer between the target and the victim is captured through Wireshark, it clearly shows that the TCP SYN packets are sent multiple times on ports 22 and 23 and didn’t receive any reply packet for those request packet.
Bypass Insane T5 Firewall filter
1st method
Use –max-retries argument to increase the –max-retries value so that each retry gives the accurate status of one port at a time. Execute given below command for increasing maximum retries with T5 scan here I had 4 you can modify it as per your requirement.
nmap -T5 -p21-25 192.168.1.104 --max-retries 4
now if you notice from given below image you can observe that it has shown all 5 ports are open.

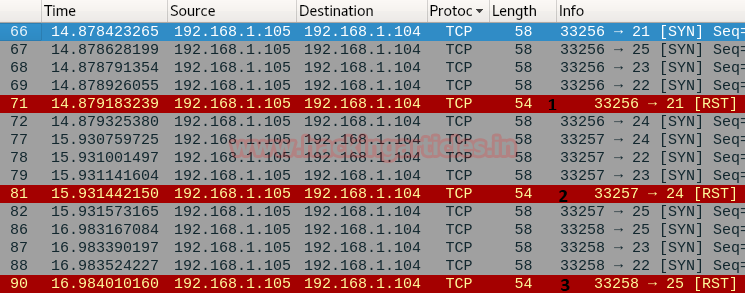

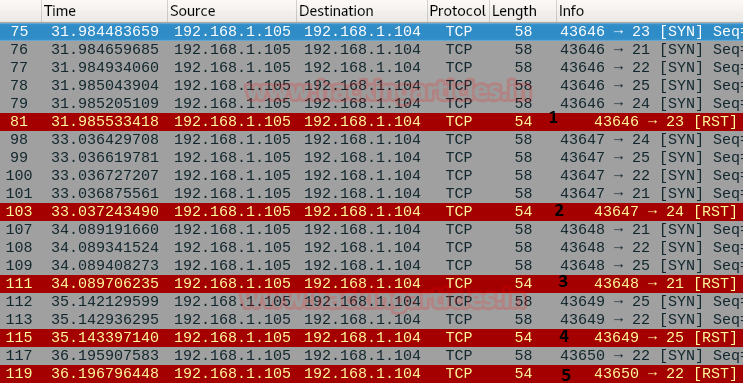

Here, the packet transfer shows that in each retry one different port sends the reply in order to confirm its status as shown in the given below image.
2nd Method
The second method is to use a timing template which has a greater time difference between the packets like here we can use the timing template below T5 i.e. from T4 to T0 to bypass above rule.
nmap -T4 -p21-25 192.168.1.104 or nmap -T3 -p21-25 192.168.1.104 or nmap -T2 -p21-25 192.168.1.104 or nmap -T1 -p21-25 192.168.1.104 or nmap -T0 -p21-25 192.168.1.104
Here, the packet transfer shows that each port has sent the reply but the first reply was instantly and other ports replied one by one after some time.
Block Aggressive T4, Normal T3 & Polite T2 Scan
Now given below rules will block TCP packets from an IP address if the packet count goes more than 1. In other words, only the first packet will be responded from an IP address in 3 seconds.
sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --set sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --update --seconds 3 --hitcount 1 -j DROP
Here we are using -T4 for scanning 5 ports, the time difference between packets is very much less than 1 second so if we scan five ports at a time it will show one as open/closed and others as filtered. But -T4 has also –max-retries set to 6 means it will retry to get the reply from ports 6 more times but as the time limit exceeds the total time taken by all retries it will show all ports filtered
nmap -T4 -p21-25 192.168.1.104 or nmap -T3 -p21-25 192.168.1.104 or nmap -T2 -p21-25 192.168.1.104
The Result of T4, T3, and T2 scan can be as either all port will be filtered or anyone port can show open/closed state. From given below image you can observe that it has shown all 5 ports are filtered.
Here we can see that none of the packets got the reply
Bypass Aggressive T4, Normal T3 & Polite T2 Firewall filter
To bypass this kind of rule we have to use a Timing Template which is slower than -T4

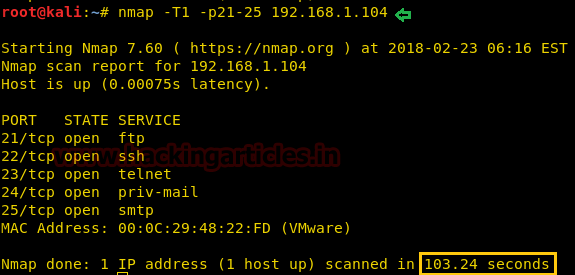

nmap -T1 -p21-25 192.168.1.104

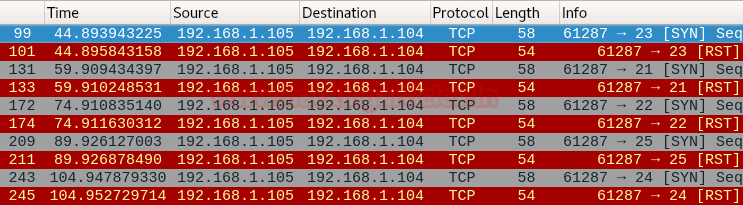

Here we can see that all the packets got a reply because the time interval in T1 is almost 15 seconds.
Block Sneaky (-T1) Scan
Now, this rule is to block TCP packets from an IP address if the packet count goes more than 1. In other words, only the first packet will be responded from an IP address in 200 seconds.
sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --set sudo iptables -I INPUT -p tcp -m state --state NEW -m recent --update --seconds 200 --hitcount 1 -j DROP
Now repeat the T1 scan again as given below and this time you will found that firewall is blocking our Nmap probes for identifying the open/closed state of any port.
nmap -T1 -p21-25 192.168.1.104

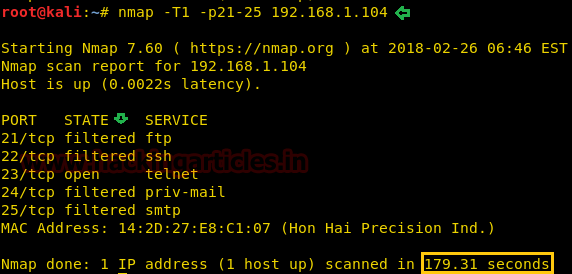

Results of T1 scan can be as either all port will be filtered or anyone port can show open/closed state. From given below image you can observe that it has shown all 4 ports are filtered.
Here we can see that only one of the packets got the reply rest are drop by the firewall.
Bypass Sneaky (-T1) Scan
To bypass this kind of rule we have to use a Timing Template which has time difference in packets for more than 200 seconds, therefore use paranoid time scan because the time difference between two packets is near about 5 mints as discussed above.
nmap -T0 -p21-25 192.168.1.104

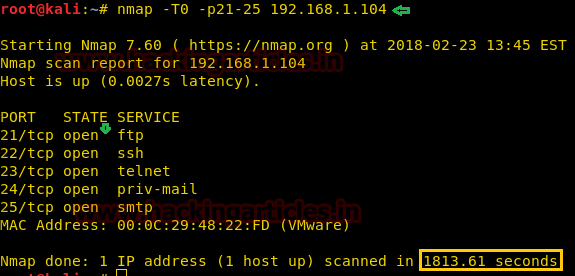

From given below image you can observe that it has taken 1813.61 sec which is close to 30 mints for scanning 5 ports and found open state for all 5 ports.
Here we can see that we have got the response of every packet even though the firewall had the security rules set.
To evade any type of IPS or Firewall, you need to remember that it will take much longer time than usual to scan the target system using a slower timing template. So try to specify a small number of ports, where the slow scans don’t take time to scan the ports that you don’t intend to.
