Threat Hunting

AlienVault: OSSEC (IDS) Deployment

by Raj

In this article, we will discuss of Deployment of OSSEC (IDS) agents to the AlienVault server.

OSSEC is an open-source, host-based intrusion detection system (commonly called IDS) that market itself as the world’s most widely used intrusion detection system that performs or helps us to Monitor: –

  • Network Anomalies
  • Log analysis
  • Integrity Checking
  • Windows registry monitoring
  • Rootkit detection
  • Process monitoring
  • Real-time alerting
  • Active response
  • Policy monitoring

Intrusion detection systems are customizable like a firewall and also, they can be configured to send alarm messages upon a rule’s instruction to automatically answer to the threat or warning as for your network or device.

OSSEC (IDS) can warn us against DDOS, brute force, exploits, data leak, and more external attacks. it monitors our network in real-time and interacts with us and with our system as we decide. It can be used to monitor one server or thousands of servers in a server/agent mode.

Table of content

For Linux

  • Prerequisites
  • Required dependencies
  • Download OSSEC source code
  • Extract & install OSSEC agent from source code
  • Installation of OSSEC HIDS Agent
  • Deploying OSSEC Agent to OSSEC server
  • Running OSSEC Agent

For Windows

  • Download OSSEC agent for Windows
  • Install OSSEC agent
  • Generate OSSEC key for the agent
  • Run and verify OSSEC agent is connected or running

Prerequisites

  • Ubuntu 20.04.1
  • Windows 10
  • Root or Admin privileges

For Ubuntu 20.04.1

Required Dependencies

To install OSSEC agent on Ubuntu 20.04.1 there are some requirement need to be installed before agent installation as listed below: –

  • GCC
  • Make
  • Libevent-dev
  • Zlib-dev
  • Libssl-dev
  • Libpcre2-dev
  • Wget
  • Tar

You can download this all requirement by simply running this command: –

apt install gcc make libevent-dev zlib1g-dev  libssl-dev libpcre2-dev wget tar

Download OSSEC source code

You can download the latest OSSEC source code from the Official release page of GitHub or simply running this command: –

wget https://github.com/ossec/ossec-hids/archive/3.6.0.tar.gz -P /tmp

Extract & install OSSEC agent from source code

Once the source download complete you can extract it by simply running this command

cd /tmp
tar xzf 3.6.0.tar.gz

In manner to install OSSEC agent navigate to the source code directory and run the installation script as shown below

cd ossec-hids-3.6.0/
./install.sh

Further then select your installation language or press ENTER to choose default installation options and follow the steps as described below: –

  • Firstly, specify the type of installation. In our case, we install an OSSEC-HIDS agent, so we go with the option of the agent.
  • Next, choose the installation path. By default, we set it to /var/ossec, or we define the path as per our environment.
  • Then, enter the OSSEC-HIDS server IP or AlienVault server IP.
  • After that, enable the system integrity check.
  • Also, enable rootkit detection.
  • Depending on the need, enable or disable active directory response.
  • Once we finish defining the default options, we proceed to install the OSSEC agent by pressing ENTER.
  • Finally, we press ENTER to close the installer as shown below.

v

Deploying OSSEC agent to AlienVault server

In a manner the agent to communicate with the server

  • You need to first add it to the HIDS server or AlienVault server
  • After that extract, the agent authentication key from the AlienVault server

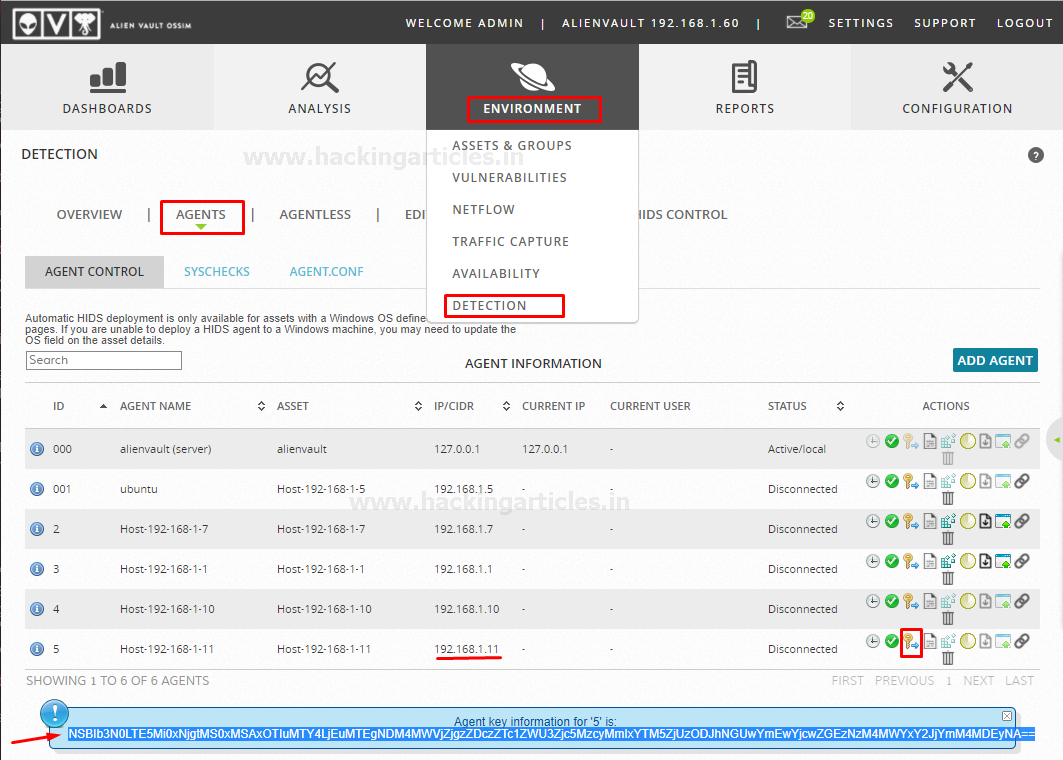

To extract agent key from server, go to the AlienVault Web UI and then navigate to Environment > Detection as shown below: –

Then select or add Agent where you installed OSSEC agent and then extract or copy the key as shown below

Once you have extracted the key, Import the key on the agent simply by running the following command: –

/var/ossec/bin/manage_agents

Enter I, paste the key that you copied from AlienVault Web UI and confirm adding the key then exit from the window by pressing Q as shown below

Running OSSEC agent

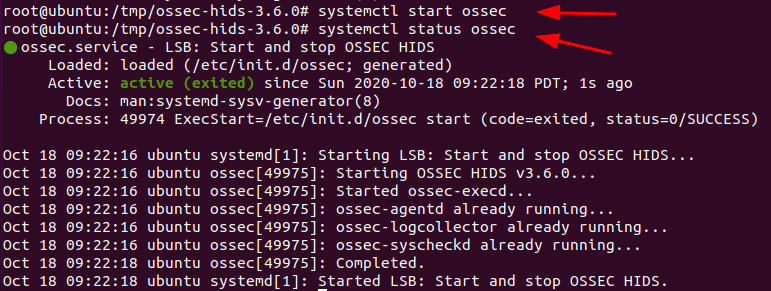

Once the installation completes starting the OSSEC agent simply by running the following command:

/var/ossec/bin/ossec-control start

Or

systemctl start ossec

To stop the agent run the below command

/var/ossec/bin/ossec-control stop
Or
systemctl stop ossec

Other service control commands are described below.

/var/ossec/bin/ossec-control {start|stop|reload|restart|status}

To check the status.

/var/ossec/bin/ossec-control status

check the logs to see if the agent has connected to the server.

tail -f /var/ossec/logs/ossec.log

As you can see the agent is successfully connected to the AlienVault server

Congratulations !!! you have successfully deployed your Ubuntu machine to the AlienVault server

For Windows Machine

Download OSSEC agent for Windows

You can download the OSSEC agent for windows from the OSSEC official page

Locate and select package Agent Windows ossec-agent-win-32-3.6.exe or the latest one as shown below:

Install OSSEC Agent

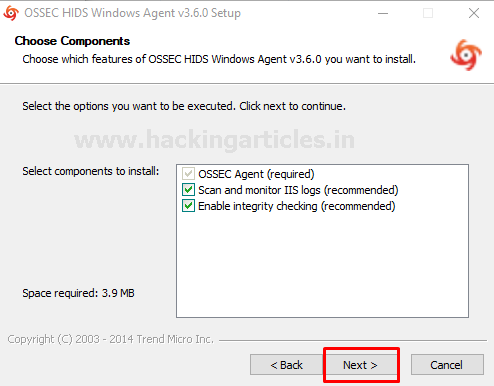

Firstly, go to the Downloads and run the OSSEC agent installer and hit next as shown below

Then, choose the path where you want to install the OSSEC agent and hit install

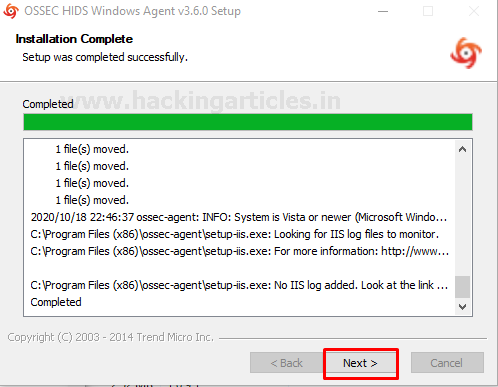

Further, then wait for the setup completion and then hit next

Select finish and then exit from the installer.

Generate OSSEC key for the agent

Follow the steps as described below:
  • At the AlienVault Web UI, go to “Environment > Detection > HIDS.”
  • Next, go to Agents located in the top right corner.
  • Then, add a new agent.
  • Copy the key and use it on the agent as shown below.

  • Now, come back to the Windows machine.
  • Enter the AlienVault server IP and paste the key as shown below.

  • After that, confirm the agent deployment by pressing OK.

  • Run the OSSEC agent and verify it is connected or running.
  • After a successful deployment of the OSSEC agent, start the service by navigating to “Manage > Start OSSEC,” as shown below.

  • As you can see, the server started successfully.

At this point, you can find a new Windows service in the OSSIM Web UI, as shown below.

Congratulations! You have successfully deployed your Windows agent to the AlienVault server.

Hmm…

Now, let’s verify it.

Check the logs of the Windows machine to ensure it is processing correctly.

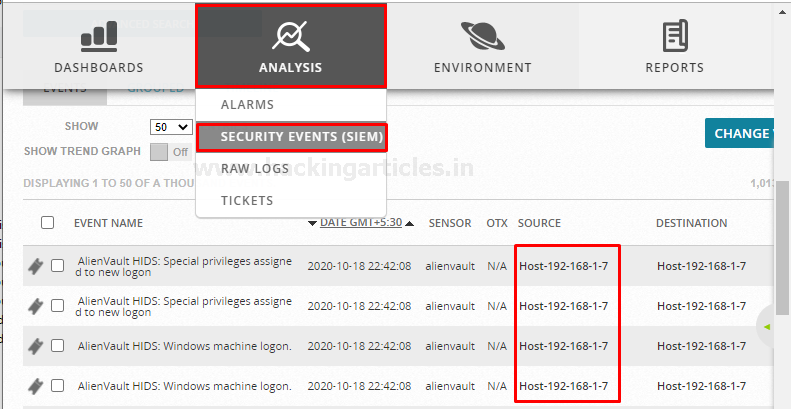

Do this by navigating to “Analysis > Security Events (SIEM).”

In this case, 192.168.1.7 is the IP address of the Windows machine.
As we can see, the Windows machine started sending the processing logs.

Hold tight! This is not enough…

Have patience …

In this article, we explained the Deployment of the OSSEC agent to AlienVault OSSIM.

In the next article, our focus will be on the Threat Hunting, Malware analysis, network traffic monitoring, and much more…

Author – Vijay is a Certified Ethical Hacker, Technical writer and Penetration Tester at Hacking Articles. Technology and Gadget freak. Contact Here
