Thick Client Pentest Lab Setup: DVTA (Part 2)
In the previous article, we have discussed the Lab setup of Thick Client: DVTA
You can simply take a walkthrough by visiting here: – Thick Client Pentest Lab Setup: DVTA
In this article, we are going to discuss how can we configure the DVTA application to connect to our server For this, I’m going to use one single window 10 instances for the entire setup. That means both the DVTA client as well as the SQL server are going to run on the same machine. You can configure the DVTA client and SQL server on Different Window 10 instances.
Table of Content
- Prerequisites
- Download Links & Credentials
- Download and install the DVTA application
- Reversing and Modifying the original DVTA application
- Configure & log in to the Modified DVTA application
Prerequisites
- Good knowledge of C# (C Sharp) programming knowledge.
- A bit of Reverse Engineering knowledge.
Download Links & Credentials
DVTA application: – https://mega.nz/file/rPJQ0LTL#CuhQ9HBeEIKHa67jbITFQbt49FZalugWlRe5A33O6y4
DnSpy application: – https://github.com/dnSpy/dnSpy/releases
Database users and password: –
Credentials:
vijay:vijay raj:raj admin:admin123
Download and install the DVTA application
You can directly download the DVTA application by using this link
https://mega.nz/file/rPJQ0LTL#CuhQ9HBeEIKHa67jbITFQbt49FZalugWlRe5A33O6y4
when the download completes extract it into a new folder which similarly looks like this as shown in the image below.
Alright, this is the Release File that we have gotten for the testing. If you see there are a couple of file inside of the Release folder and the main application here is the one with the Red icon named “DVTA.exe”

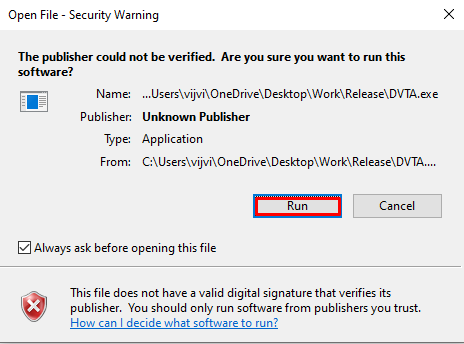

So, let’s give a double click to the DVTA.exe and run it.

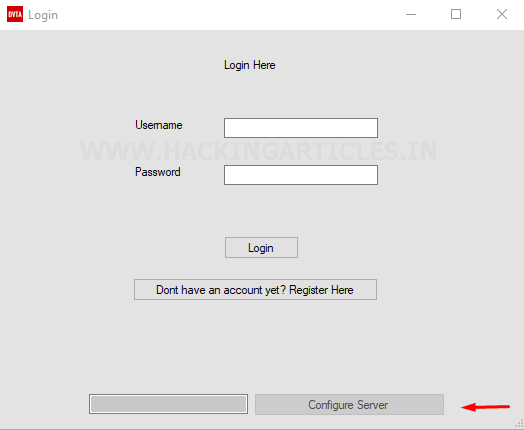

Once that done you should see a prompt window something like this. If you notice the bottom part of the prompt window, we can configure the server here.
The original DVTA application doesn’t have this feature and the IP address is hardcoded. The problem with that is we need to have a server with the exact same IP that is hardcoded in the application. For this, all we need to compile the source code to modify the application somehow so that it points or redirects to our server.
Now, our main Task before configuring the server is to enable the “configure Server” button so that it can talk to our server.
This requires a bit of Reversing knowledge…. And this going to be fun.
Reversing and Modifying the original DVTA application
Now let’s see how we can enable the “configure server button”.
Before we enable this button let’s think a while what are the situations where we came across this kind of disabled buttons in the client applications in the real world when we do pentesting. There are cases where a user logs In and some menus are disabled for him. For instance, he is the maker and he can’t have checker menus so some developers disable them in the client assuming that the user cannot enable them and these disabled menus can be easily enabled in C sharp.net applications.
Now let’s see how we can do that. First of all, simply take a copy of the Extracted DVTA Release folder for the case if we did something wrong or messed up with codes so simply, we can start from fresh without downloading it again. To enable the “configure server” button we’re going to use a tool called dnSpy. You can download it directly by following this link: – https://github.com/dnSpy/dnSpy/releases
Download the latest version from the release section.
When the download is complete extract it into a new folder.
Once the extraction is complete you should see two versions of dnSpy one is 32-bit and the other one 64-bit. We are going to use the 32-bit version because our target application is 32-bit.
So, if you see in the below image the one which is having dnSpy-x86 is the 32-bit version and the other one that just says the dnSpy is the 64-bit version.

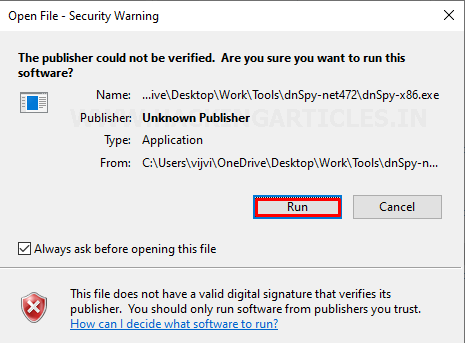

So, without wasting time Quickly open up “dnSpy-x86” by giving it a double click and simply run it
When the dnSpy application started open up the DVTA application by navigating to File > open

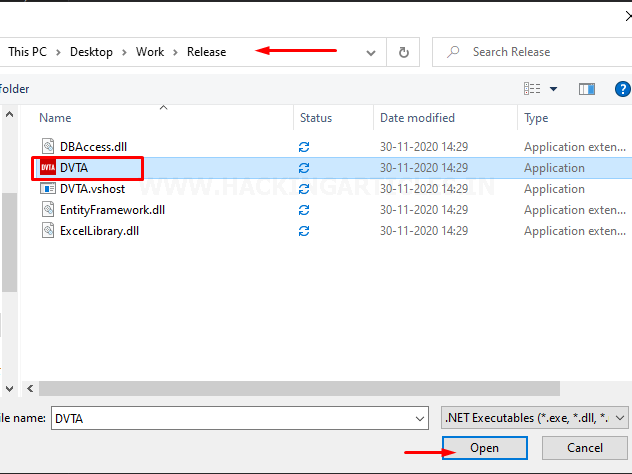

And go to the Release folder of the DVTA application and choose DVTA.exe. So, this is the main application that we’re going to modify.
Now, our main task is to find out the exact location of the button which is disabled and then patch the binary in a way that it’s going to be enabled
On the left side menu, click on the DVTA and expand the DVTA.exe. Once it expanded select DVTA. Now, If you see, there seems to be a couple of here within the DVTA application. Basically, these are C sharp files in the source code. If you notice above when you open the DVTA application, it open’s up the login page of DVTA and on that page the bottom part has the “configure server” button. So, this is what we’re interested in.
Now, without wasting time click on Login and it will start automatically decompiling the source code for us.
Now, it seems very interesting and it’s pretty easy for us to understand the entire source code of what this application is doing here. When you scroll down to the source code you can find there is a condition that is looking for a method called “is a server configured” when you click on this it will see where the definition is and when you see the definition it is always returning “false” and what happens if its return the value True.
Let’s see…
It is going to show the particular message “MessageBox.Show(“This application is usable only after configuring the server”) That means this block is never going to execute because it is always “returning false”. So what that means is “this.configserver.Enabled = False;” is the part which is going to get executed always as highlighted by the right arrow In the below image
If you noticed that is all the source code is are in C sharp.
Let’s take a look at the IL version of this source code. IL is an intermediate language. This is similar to the old assembly language in the C programming world. You can convert the source code into the IL by navigating to a drop-down box nearby the start icon. If you compare the C sharp code or IL code basically, they are doing the same thing.
As we have seen earlier “config server” is a button that you can easily find here. It’s a button of “class [system.windows.Forms]System.Windows.Forms.Button “ after this particular line there seems to be a call to “System.Windows.Forms.Control” and set Enabled method is being called and this Set_Enabled method is taking a Boolean value which can be true or false. If you see there seems to be a value which is ldc.i4.0 and then if you hover over your mouse on Set_Enabled(bool) it pushes the integer value of 0 onto the evaluation stack as an int 32 and probably that’s the reason why the button is always disabled because this value is being pushed under the stack as an argument and set enable is always set to false.

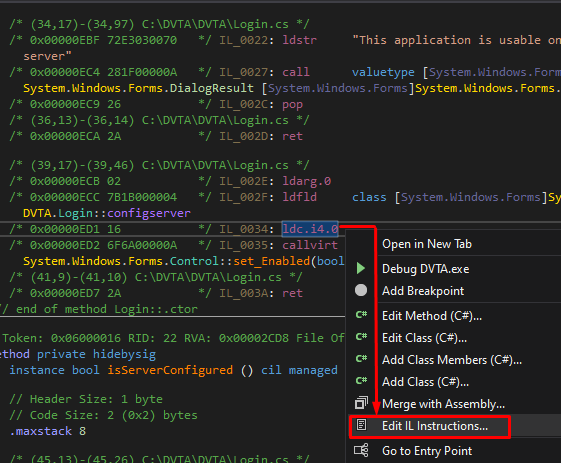

Now, give a right-click to the value of ldc.i4.0 and “Edit the IL instructions” as shown below
Now, it will open up another prompt and give a right-click to the value ldc.14.0 and further then select ldc.i4.1 instead of 0 and hit ok as shown below
Now save the configuration by navigating to the File > Save Module

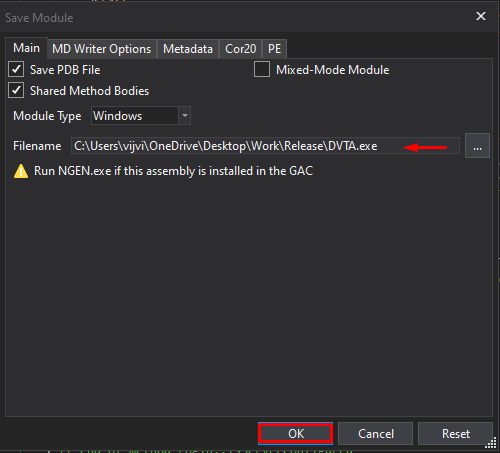

Now save this file in the same place where your original DVTA exist so that it can replace the original DVTA.exe as shown below
Now we can close the dnSpy application and open up the Modified application DVTA.exe by going to the same directory.
Configure & log in to the Modified DVTA Application
Hurray…as you can see the “configure server button is enabled
So, we’re all set to configure the server. As I told you earlier, we are going to use the same server as the database.
So, let’s enter “127.0.0.1” as our server and click on “configure server”.
As you can see our server is successfully configured.
Now, just to make sure everything is fine to come back to the directory of release folder of DVTA and give a double-tap to the DVTA.exe XML configuration file which is just below the DVTA application as shown below
This is basically a configuration file. Give it a double tap and open the configuration file.
When you see the application settings you can see that the Database server is “127.0.0.1/SQLExpress” and the “FTP server is also configured to 127.0.0.1”.
Awesome… now we’re good with the configuration.
Now open the modified DVTA application and log in as the user “vijay” that we created previously on the SQL Server setup.

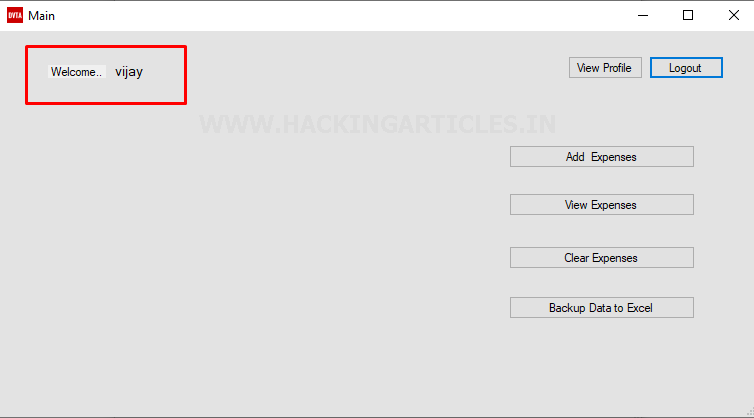

Great, as we can see we have successfully logged in to the application
Let’s also verify another user, for example, admin and check which rights admin have
Great, as we can see everything works fine and we’re successfully logged in as user admin.
Congratulations.
Now if you have been done until here then you are all set with your Damn Vulnerable Thick Client Application setup.
From the next part, we are going to systematically pentesting this application for various issues.
One most important thing “you can use all these steps from here as a checklist for your real-world Thick Client Penetration Testing Engagements”.
