Forensic Investigation: Extract Volatile Data (Manually)

In this article, we will run a couple of CLI commands that help a forensic investigator to gather volatile data from the system as much as possible. The commands we discuss in this post are not the whole list of commands, but these are the most commonly used ones.

As per forensic investigator, create a folder on the desktop name “case” and inside create another subfolder named as “case01” and then use an empty document “volatile.txt” to save the output which you will extract.

Here I have saved all the output inside /SKS19/prac/notes.txt which help us creating an investigation report.

Table of Content

  • What is Volatile Data?
  • System Information
  • Currently available network connections
  • Routing Configuration
  • Date and Time
  • System Variables
  • Task List
  • Task List with Modules
  • Task List with Service
  • Workstation Information
  • MAC Address save in system ARP Cache
  • System User Details
  • DNS configuration
  • System network shares
  • Network configuration

What is Volatile Data?

Forensic analysts collect two types of data in Computer Forensics: Persistent data and Volatile data. Persistent data refers to data that users store on a local hard drive and that remains preserved when the computer is OFF. Volatile data refers to any kind of data that exists in memory, which users will lose when the computer is powered OFF.

The registry’s cache and random access memory (RAM) hold volatile data. We call this investigation of the volatile data “live forensics”.

System Information

Microsoft Windows includes a system profiler that displays diagnostic and troubleshooting information related to the operating system, hardware, and software.

We can collect this volatile data with the help of commands. All we need is to type this command.

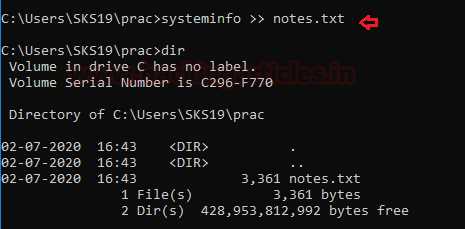

systeminfo >> notes.txt

It will save all the data in this text file. We use the [ dir ] command to check whether this file is created or not and to compare the size of the file each time after executing every command.

forensic investigation extract volatile data manually

Now, go to this location to see the results of this command. Where it will show all the system information about our system software and hardware.

Currently Available Network Connections

Network connectivity describes the extensive process of connecting various parts of a network. With the help of routers, switches, and gateways.

We can check all the currently available network connections through the command line.

netstat -nao >> notes.txt

We can use the [dir] command to check whether it is created or not, and as you can see, the size of the get has increased now.

forensic investigation extract volatile data manually

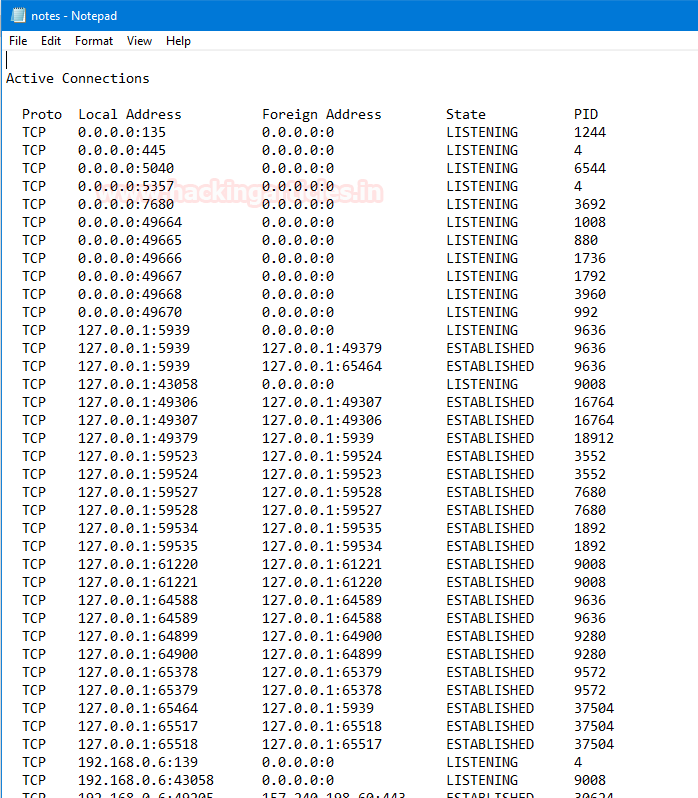

Now, open that text file to see all active connections in the system right now. It will also provide us with some extra details like state, PID, address, protocol.

Routing Configuration

It specifies the correct IP addresses and router settings. Host configuration: sets up a network connection on a host computer or laptop by logging the default network settings, such as IP address, proxy, network name, and ID/password.

To know the Router configuration in our network follows this command.

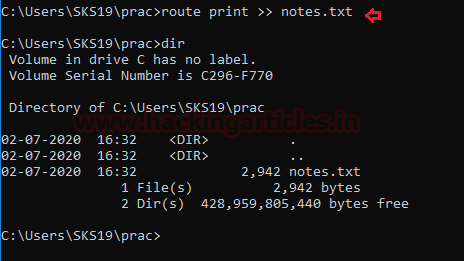

route print >> notes.txt

We can check the file with [dir] command.

forensic investigation extract volatile data manually

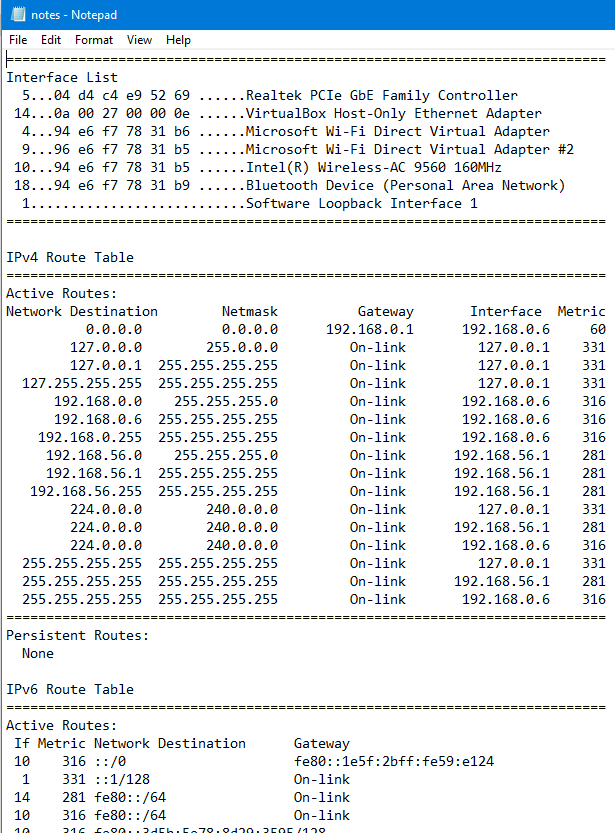

Open the txt file to evaluate the results of this command. Like the Router table and its settings.

Date and Time

To know the date and time of the system we can follow this command. We can also check the file is created or not with the help of [dir] command.

echo %date% %time% > notes.txt
dir
forensic investigation extract volatile data manually

Open that file to see the data gathered with the command.

System Variables

A dynamic named value, called a System variable, can affect the way running processes behave on the computer. They are part of the system in which processes are running. For Example, a running process can query the value of the TEMP environment variable to discover a suitable location to store temporary files.

We can check all system variable set in a system with a single command.

set >> notes.txt

We can check whether the file is created or not with [dir] command.

dir

forensic investigation extract volatile data manually

Now, open the text file to see set system variables in the system.

Task List

A Task list is a menu that appears in Microsoft Windows, It will provide a list of running applications in the system. To get the task list of the system along with its process id and memory usage follow this command.

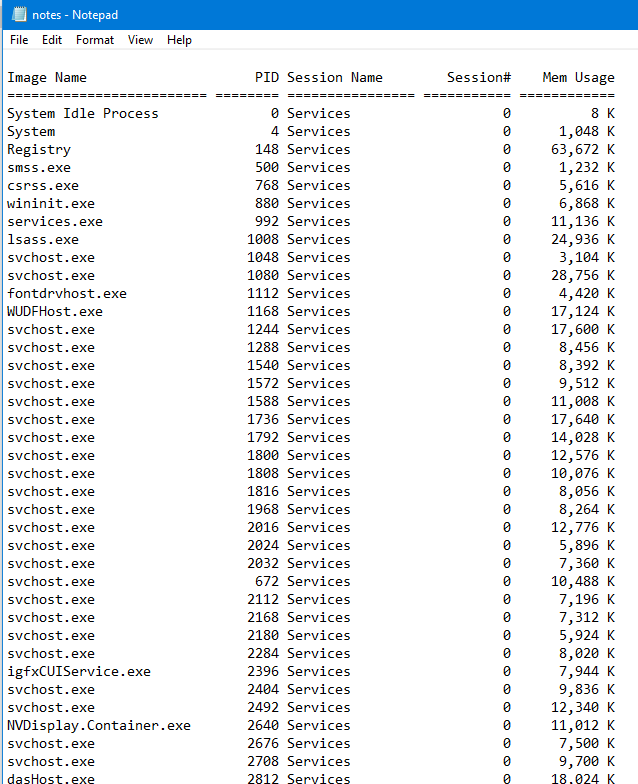

tasklist >> notes.txt

we can also check whether the text file is created or not with [dir] command.

Open the text file to evaluate the details.

forensic investigation extract volatile data manually

Task List with Modules

With the help of task list modules, we can see the working of modules in terms of the particular task. We can see that results in our investigation with the help of the following command.

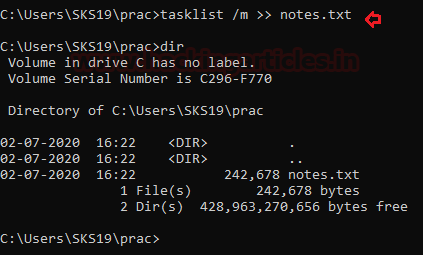

tasklist /m >> notes.txt

we can check whether our result file is created or not with the help of [dir] command.

Open the text file to evaluate the command results.

forensic investigation extract volatile data manually

Task List with Services

It will showcase all the services taken by a particular task to operate its action. We get these results in our Forensic report by using this command.

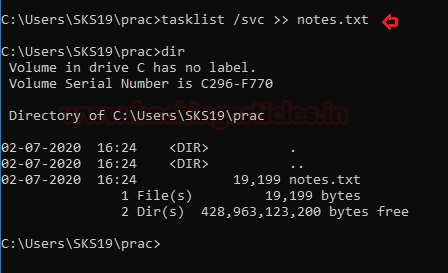

tasklist /svc >> notes.txt

We use the [dir] command to check whether the text file is created or not.

Open this text file to evaluate the results. It will showcase the services used by each task.

forensic investigation extract volatile data manually

Workstation Information

People know a workstation as a special computer designed for technical or scientific applications intended primarily for use by one person at a time. Users commonly connect them to a LAN and run multi-user operating systems. Follow these commands to get our workstation details.

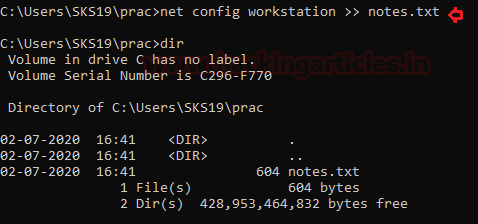

net config workstation >> notes.txt

to check whether the file is created or not use [dir] command.

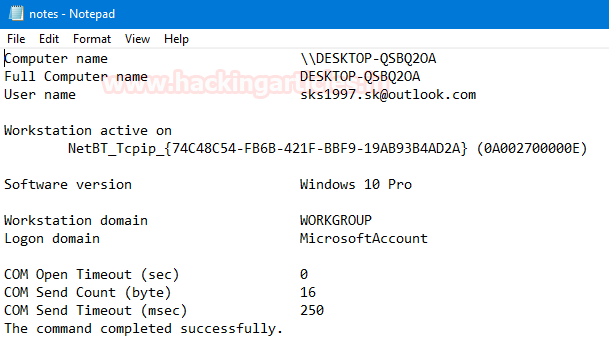

Now, open the text file to see the investigation results.

MAC Address saved in System ARP Cache

There are two types of ARP entries- static and dynamic. Most of the time, we will use the dynamic ARP entries. This means that a device keeps the ARP entries for some period of time, as long as it is being used.

The opposite of a dynamic, if ARP entry is the static entry we need to enter a manual link between the Ethernet MAC Address and IP Address. Because of management headaches and the lack of significant negatives. We use dynamic most of the time. To get that details in the investigation follow this command.

arp -a >> notes.txt

we can whether the text file is created or not with [dir]  command.

forensic investigation extract volatile data manually

Now, open the text file to see the investigation report.

System User Details

A user is a person who is utilizing a computer or network service. Users of computer systems and software products generally lack the technical expertise required to fully understand how they work. To get that user details to follow this command.

net user %username% >> notes.txt

we can use [dir] command to check the file is created or not.

forensic investigation extract volatile data manually

Now, open a text file to see the investigation report.

DNS Configuration

DNS is the internet system for converting alphabetic names into the numeric IP address. When you type a web address into the browser, DNS servers return the IP address of the webserver associated with that name. To know the system DNS configuration follow this command.

ipconfig /displaydns >> notes.txt

we can see the text report is created or not with [dir] command.

Now open the text file to see the text report.

System network shares

A shared network would mean a common Wi-Fi or LAN connection. The same is possible for another folder on the system. By turning on network sharing and allowing certain or restricted rights, other users/computers on the same network can view these folders. We can see these details by following this command.

net share >> notes.txt

we can also check the file it is created or not with [dir] command.

Now, open that text file to see the investigation report.

ipconfig /all >> notes.txt

Network Configuration

Network configuration is the process of setting a network’s controls, flow, and operation to support the network communication of an organization and/or network owner. This term incorporates the multiple configurations and steps up processes on network hardware, software, and other supporting devices and components. To get the network details follow these commands.

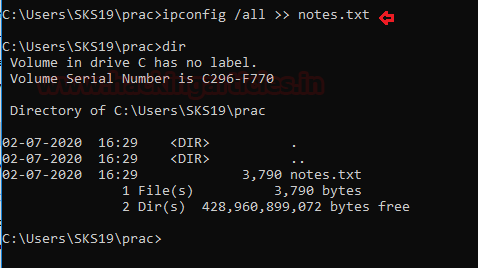

ipconfig /all >> notes.txt

As usual, we can use [dir] commands to check whether the system creates the file or not.

Now, open the text file to see the investigation report.

As we said earlier, users commonly use these as one of the few commands. The Forensic Investigator has plenty of commands left in their arsenal.

forensic investigation extract volatile data manually
