Understanding Guide to Nmap Firewall Scan (Part 2)
In our previous article we had demonstrated “Nmap firewall scan (part 1)” by making use of Iptable rules and then try to bypass firewall filter to perform NMAP Advance scanning, today we are going to discuss the second part of it.
Requirement
Attacker: Kali Linux
Target: Ubuntu
Spoof MAC Address Scan
Allow TCP Packet from Specific Mac Address
If network admin wants to establish TCP connect from specific MAC address and do not want to connect with another system then he could use following Iptable rules to apply firewall filter in his network.
iptables -I INPUT -p tcp -m mac --mac-source "AA:AA:AA:AA:AA:AA" -j ACCEPT iptables -A INPUT -p tcp -j REJECT --reject-with tcp-reset

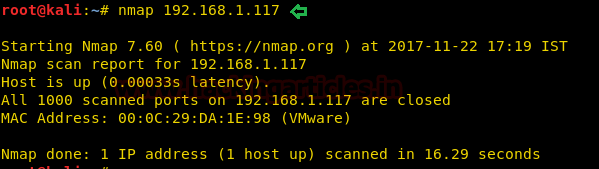

Now when the attacker will perform basic network scanning on the target’s network, he could not able to enumerate ports and running service of a victim’s system.
nmap 192.168.1.117
In order to bypass above applied filter attacker may run netdiscover command or nmap Host Scan in Kali Linux terminal to identify the active host in the network. As a result he will get a table which contains MAC address and IP address of the active host in the local network.
Now either use one by one all MAC address in nmap command or save all MAC address in a text file and give its path in nmap command but to perform this attacker first need to enable “Promiscuous mode” of his network. Well, to do so type given below commands first for Promiscuous mode and second for nmap scanning.
ip link set eth0 promisc on nmap --spoof-mac AA:AA:AA:AA:AA:AA 192.168.1.117
Hence if you are lucky to spoof correct Mac address then you can easily bypass the firewall filter and able to establish TCP connect with victim’s network for port enumeration.
Nice!!! If you will notice in given below image you will observe open ports of the target’s network.
Spoof IP Address
Allow TCP Packet from Specific IP
If network admin wants to establish TCP connect from specific IP and do not want to connect with another system then he could use following Iptable rules to apply firewall filter in his network.
iptables -A INPUT -p tcp -j REJECT --reject-with tcp-reset iptables -I INPUT -p tcp -s 192.168.1.120 -j ACCEPT

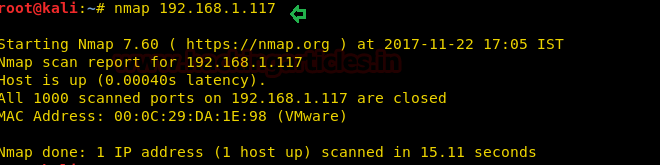

Now when again attacker will perform basic network scanning on the target’s network, he could not able to enumerate ports and running service of victim’s system.
nmap 192.168.1.117
In order to bypass above applied filter attacker may again run netdiscover command or nmap Host Scan in Kali Linux terminal to identify the active host in the network. As a result he will get a table which contains MAC address and IP address of the active host in the local network.
Now either use one by one all IP address in nmap command or save all IP address in a text file and give its path in nmap command and then execute the following command:
nmap -e eth0 -S 192.168.1.120 192.168.1.117
Hence if you are lucky to spoof correct IP address then you can easily bypass the firewall filter and able to establish TCP connect with victim’s network for port enumeration.
Great!! If you will notice in given below image you will observe open ports of target’s network.
Data-String Scan
Allow TCP Packet from Specific String
If network admin wants to establish TCP connect from a system which contains a specific string and do not want to connect with other system does not contain that special string packets then he could use following Iptable rules to apply firewall filter in his network.
iptables -I INPUT -p tcp -m string --algo bm --string "Khulja sim sim" -j ACCEPT iptables -A INPUT -p tcp -j REJECT --reject-with tcp-reset
In above rule, you can see we had used “Khulja sim sim” as a special string to establish TCP connection. Hence only those TCP connection could be established which contain “Khulja sim sim” in packets.
Now when again attacker will perform basic network scanning on target’s network, he could not able to enumerate ports and running service of victim’s system because traffic generates from his network does not contain special string in packets thus firewall of target system will discard all TCP packet of attacker’s network.
nmap 192.168.1.117
If the attacker somehow sniffs special string “khulja sim sim” to connect with target’s network then he could use –data-string argument in nmap command to bypass the firewall.
nmap --data-string "Khulja sim sim" 192.168.1.117
Hence if you are lucky to sniff correct data string then you can easily bypass the firewall filter and able to establish TCP connect with victim’s network for port enumeration.
Wonderful!! If you will notice given below image you will observe open ports of target’s network.
Hex String Scan
Allow TCP Packet from Specific Hex String
If network admin wants to establish TCP connect from a system which contains the hexadecimal value of the particular string and do not want to connect with other system does not contain the hexadecimal value of that special string in packets then he could use following Iptable rules to apply firewall filter in his network.
iptables -I INPUT -p tcp -m string --algo kmp --hex-string "RAJ" -j ACCEPT iptables -A INPUT -p tcp -j REJECT --reject-with tcp-reset
In the above rule, you can see we had used hex value for “RAJ” as a special string to establish a TCP connection. Hence only those TCP connection could be established which contain hex value of “RAJ” in the packet.
Now when again attacker will perform basic network scanning on target’s network, he could not able to enumerate ports and running service of victim’s system because traffic generates from his network does not contain hex value of the special string in packets thus firewall of target system will discard all TCP packet of attacker’s network.
nmap 192.168.1.117
If an attacker somehow sniffs special string “RAJ” to connect with target’s network then he could use its hex values with –data argument in nmap command to bypass the firewall.
nmap --data "\x52\x41\x4a" 192.168.1.117
Hence if you are lucky to sniff correct hex value of particular data string then you can easily bypass the firewall filter and able to establish TCP connect with victim’s network for port enumeration.
Hence, if you will notice given below image you will observe open ports of the target’s network.
IP-Options Scan
Reject TCP Packets contains tcp-option
By default, nmap sends 24 bytes of TCP data in which 4 bytes of data is reserve for TCP Options if network admin rejects 4 bytes tcp –option packet to discord tcp connection to prevent his network from scanning. Type following iptable rule to reject 4-bit tcp-option in his network:
iptables -I INPUT -p tcp --tcp-option 4 -j REJECT --reject-with tcp-reset

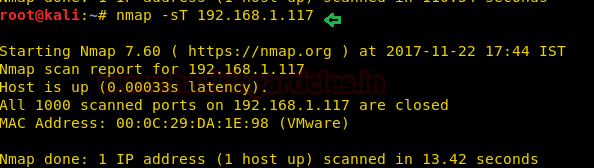

Now when an attacker will perform TCP scanning [sT] on the target’s network, he could not able to enumerate ports and running service of the victim’s system. Since tcp-option is 4 bytes hence firewall discard tcp packet of attacker’s network.
nmap -sT 192.168.1.117
The IP protocol gives numerous options that could be placed in packet headers. Contrasting the omnipresent TCP options, IP options are seldom observed because of security reasons. The most powerful way to specify IP options is to simply pass in hexadecimal data as the argument to –ip-options.
Precede every hex byte value with \x. You may repeat certain characters by following them with an asterisk and then the number of times you wish them to repeat. For example, \x01\x07\x04\x00*4 is the same as\x01\x07\x04\x00\x00\x00\x00 this is also called NuLL bytes

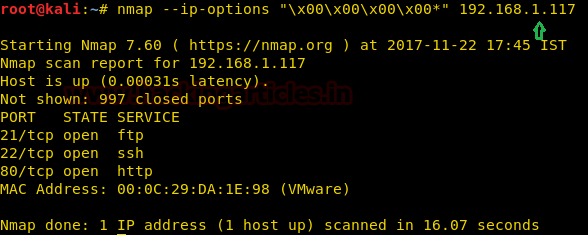

Now type the following command with the ip-option argument as shown below:
nmap --ip-options "\x00\x00\x00\x00\x00*" 192.168.1.117
Note that if you denote the number of bytes that is not a multiple of four; an incorrect IP header length will be set in the IP packet. The reason for this is that the IP header length field can only express multiples of four. In those cases, the length is computed by dividing the header length by 4 and rounding down.
GOOD! If you will notice given below image you will observe open ports of the target’s network.
