FTP Penetration Testing on Windows (Port 21)

Today we are sharing tips and tricks on FTP attacks and security through FTP penetration testing which will help to secure your server from any kind FTP attack.

FTP stands for File Transfer Protocol used for the transfer of computer files such as docs, PDF, multimedia and etc between a client and server on a computer network via port 21. Port 21 is default port which gets open when FTP is activated for sharing data.

Let’s start!!

Install & Configure FTP Server on Windows 7

Firstly we are going to set up the FTP server on our Windows 7 for sharing the file in a LAN. In order to accomplish that we are going to open Control Panel >Programs >Programs and Features >Turn Windows features on or off as shown below.

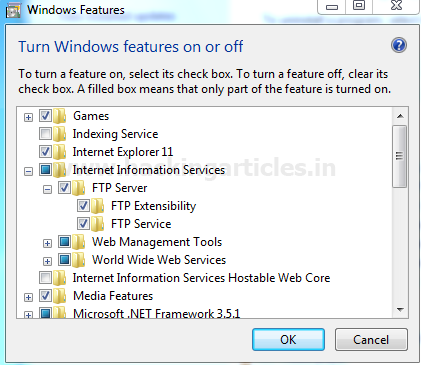

Here Expand Internet Information Services and check the FTP Server option.

Also, ensure that FTP Extensibility and FTP Service are both checked as shown below and click OK to begin Installation.

This Installs the IIS and FTP Service Manager, be patient it might take some time.

Configure FTP Site in IIS

Now to open IIS, we will open Control Panel after then select System and Security and here we will open Administrative Tools. In Administrative Tools, you will find IIS Manager as shown below, open it.

The new window of Internet information IIS Manager will come up; right-click Sites given in left panel under Connections, select Add FTP Site.

This will open a new window as shown below.

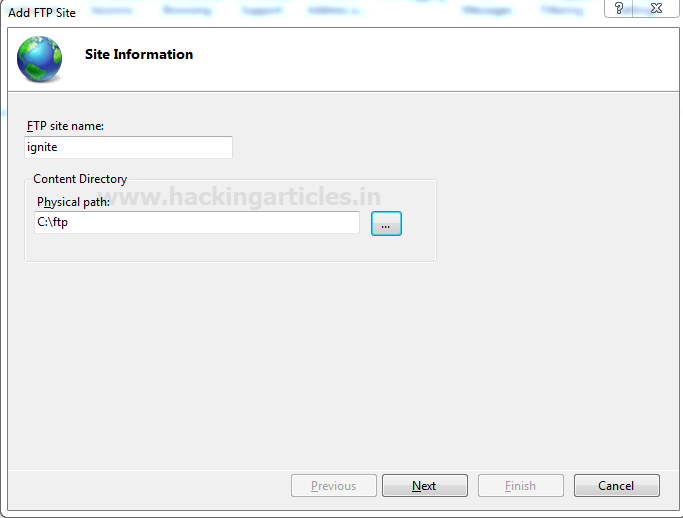

Enter the name of the FTP site of your choice, as shown in given image ignite.

Enter the path to the FTP folder you want to use to send and receive files. In our case, we created a folder named ftp in location C:\ftp.

And click next.



Binding and SSL Settings, we will bind our IPv4 address to the server by allowing following setting then click on next.

  • Enter IP:192.168.1.128 and Port: 21.
  • Enable the checkbox for Start FTP site automatically
  • In SSL option select No SSL and click next.

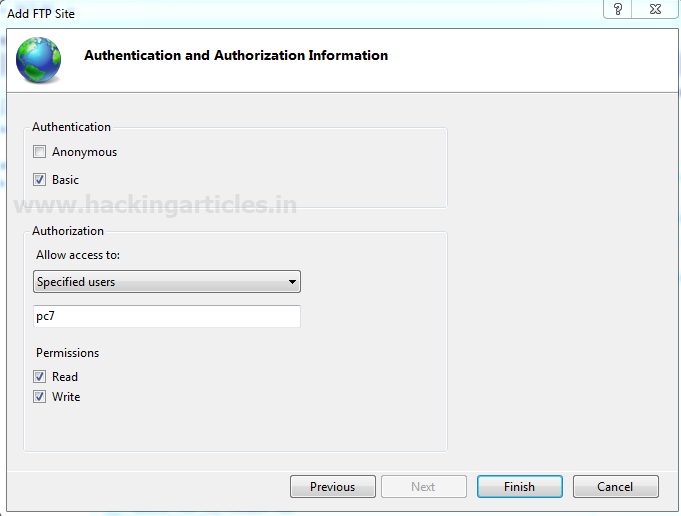

Allow following setting in Authentication and Authorization for your FTP site and then click on Finish.

Authentication: Basic

Authorization: specific users (pc7)

Permission: read and write

From the given image, you can see we had successfully configured an FTP server for Ignite. Now let’s try to connect with it for sharing files.

Scanning FTP with nmap

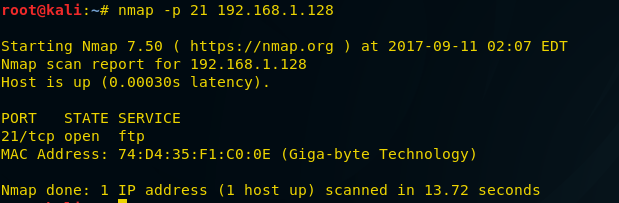

An attacker may take help of nmap to verify whether port 21 is activated or not. For FTP penetration, we are also using nmap in order to scan the targeted system (192.168.1.128) for open FTP port.

nmap -p 21 192.168.1.128

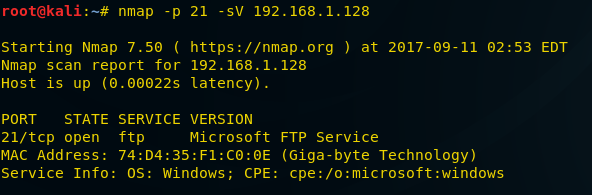

If file transfer service is allowed then nmap will show OPEN as a state for port 21, as shown in the given image.

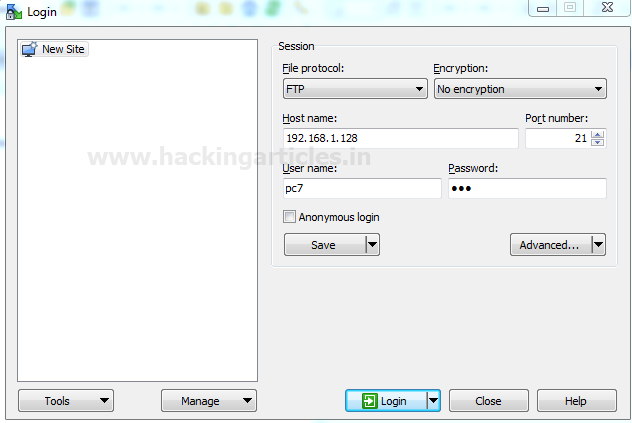

Connect client to FTP Server through WinSCP

WinSCP is a free software which is used to access the FTP server. You can download it from here.

  • Protocol to: FTP
  • Encryption To: No Encryption
  • Hostname: IP of the FTP Server
  • Port: 21
  • Username and Password: Windows login credentials of the user.

Click on Login.

As you can see I have successfully connected to my FTP server which has a file called demo.txt.



Version Enumeration on FTP

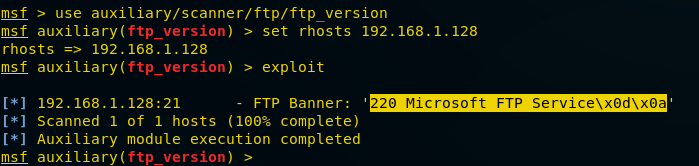

Now, let’s try to get the FTP version through ftp_version on Metasploit

Open the terminal in your Kali Linux and Load Metasploit framework now type the following command to scan for FTP version.

use auxiliary/scanner/ftp/ftp_version
msf auxiliary(ftp_version) > set rhosts 192.168.1.128
msf auxiliary(ftp_version) > exploit

Hiding Banner

Open IIS Manager.

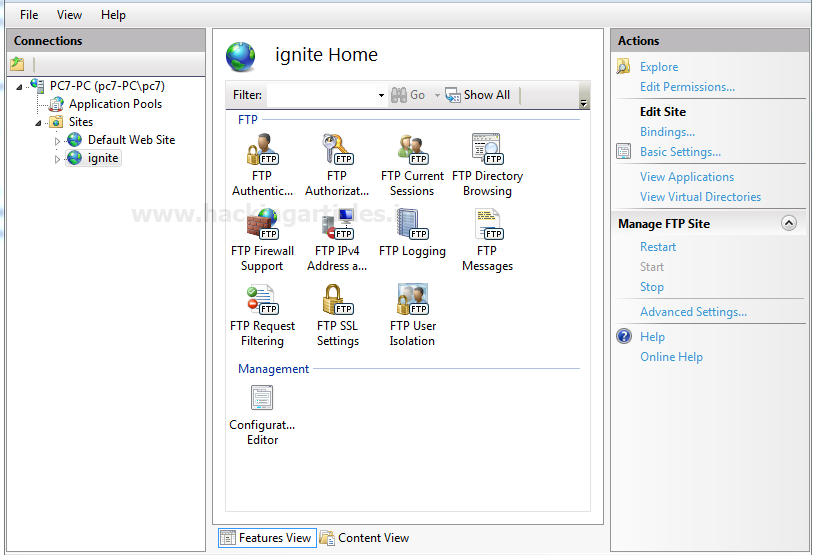

Click on Features View has given in the bottom of the window.

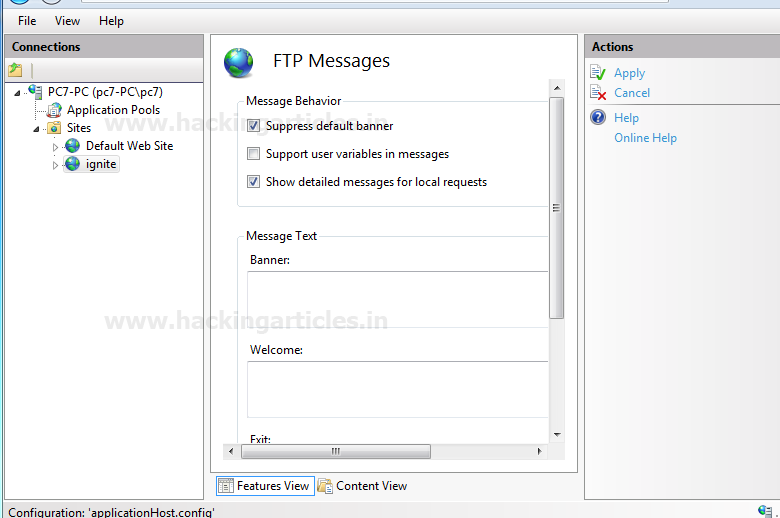

A new window for FTP messages will come up where you can change Message Behavior.

  • Enable suppress default banner
  • Enable Show detailed messages for local request

Now let’s check if our FTP version is still visible or not.

You can verify it by executing following command in Kali Linux for NMAP version scan.

nmap -p 21 -sV 192.168.1.128

As you can see that our FTP version is no longer visible to anybody.

FTP Brute force Attack

Let’s try to make Brute force attack on our FTP Server using Metasploit.

Open the terminal in your Kali Linux and Load Metasploit framework now type the following command to Brute force FTP login.

use auxiliary/scanner/ftp/ftp_login
msf auxiliary(ftp_login) > set rhosts 192.168.1.128
msf auxiliary(ftp_login) > set user_file /root/Desktop/user.txt
msf auxiliary(ftp_login) > set pass_file /root/Desktop/pass.txt
msf auxiliary(ftp_login) > set stop_on_success true
msf auxiliary(ftp_login) > exploit

From the given image, you can observe that our FTP server is not secure against brute force attack because it is showing the matching combination of username and password for login. So let’s protect our FTP server against Brute force.

Secure FTP server against Brute Force Attack

Open IIS Manager

Now open FTP IPv4 Address and Domain Restrictions. Here we are going to allow only a particular IP address to access the FTP server. This will allow only valid IP to get connect with FTP.

Allow specific IP to connect FTP

Now following given below step:

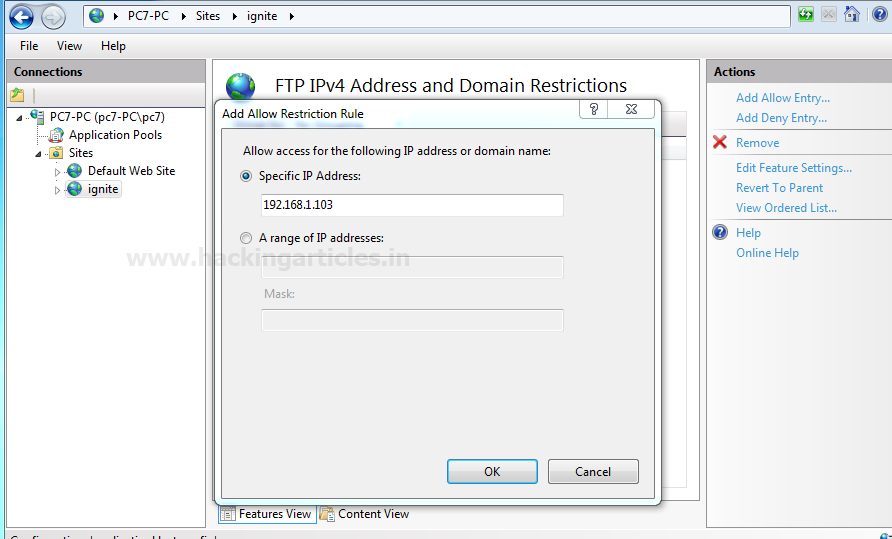

  • Click on FTP IPv4 Address and Domain Restrictions
  • Click on Add Allow Entry from the Actions Tab in the right panel
  • Select Specific IP Address and enter the IP address
  • Click OK

Here you can also add a range of IPs of your network.

Restrict IPs to connect FTP

Now repeat the step with some changes to restrict other IPs for denying to access FTP services.

Now following given below step:

  • Click on FTP IPv4 Address and Domain Restrictions
  • Click on Add deny Entry from the Actions Tab in the right panel
  • Select Specific IP Address and enter the IP address
  • Click OK

Hence if any other user or attacker finds out credential for FTP login he cannot able to connect with the server.

Let’s verify above setting by Brute force again in the same way we did before. From the given image, you can observe though it is showing incorrect combination for correct credentials also.

FTP Port Transfer

You can forward port 21 on another port for increasing server security although to perform this you need to open IIS.

Now click on the Bindings on Actions Tab.

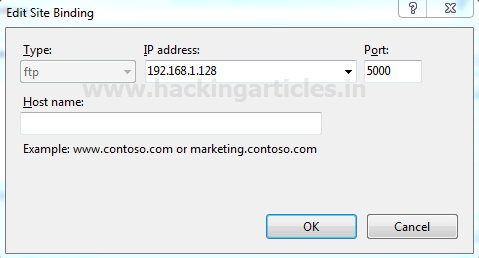

It will open a window as shown below where it is showing that FTP service is activated on port 21, now click on edit to replace this port into another.

From the given image you can see we have are now using port 5000 for FTP services.

Now let’s check using nmap

nmap -p 5000 -sV 192.168.1.128

As you can see the FTP service has been shifted to port 5000

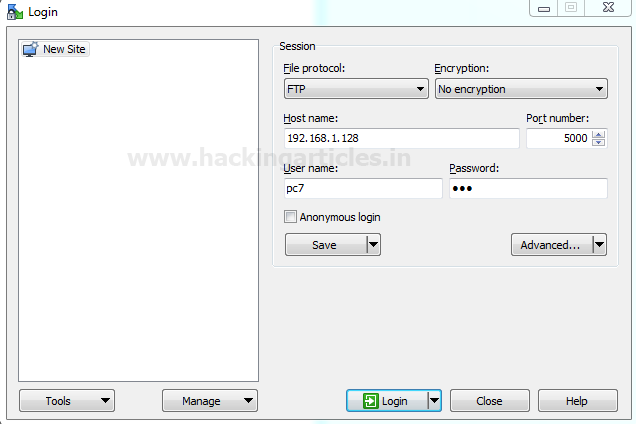

Now to verify if the service is actually running on port 5000 let’s login into FTP server using WinSCP and this time using port 5000 as shown below

Great!!! We are successfully connected with FTP server via port 5000

FTP Log Monitoring

In IIS Manager we can also manage Logs of our FTP Server. Here, we can Schedule the Logging and also manage the size of logs and Location of Logs For monitoring ftp log follow given below steps:

Open FTP Logging in the Features View.

  • The format of the log file: click on the W3C field and then select the desired option such as date, time, client IP and etc.
  • Directory: browse a location where you want to save the logs
  • Schedule: Daily

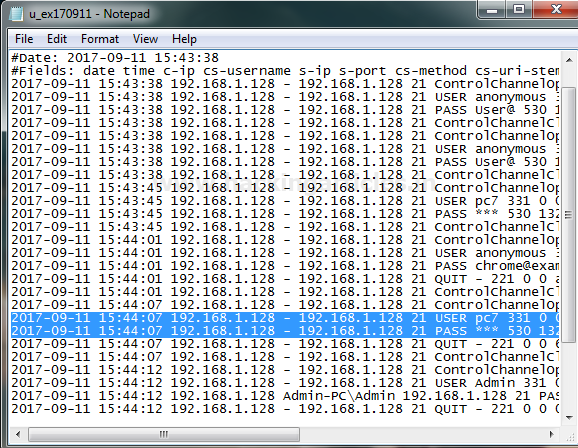

Now if you want to view logs of FTP server you can open the directory which you have browsed for saving logs i.e. C:\inerpub\logs\Logsfiles

From given below image you can observe logs for FTP login.
