DOS Attack with Packet Crafting using Colasoft

In our previous article we had discussed “packet crafting using Colasoft Packet builder”  and today you will DOS attack using colasoft Packet builder. In DOS penetration testing part 1 we had used Hping3 in Kali Linux for generating TCP, UDP, SYN, FIN and RST traffic Flood for DOS attack on target’s network. Similarly, we are going to use colasoft for all those attacks by making a change in their data size of packets and time elapse between packets.

Let’s start!!!

TCP DOS Attack

You can download it from given link, once it gets downloaded then run the application as an administrator to begin the DOS attack.

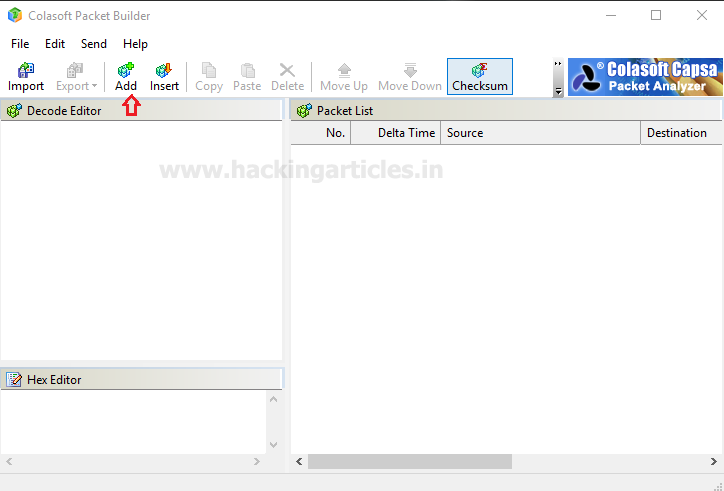

Click on ADD given in menu bar.

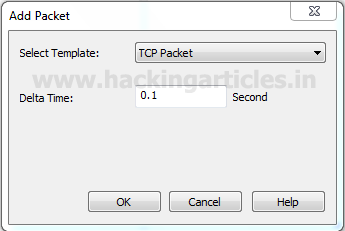

A small window will pop up to select the mode of attack here we are going to choose TCP packet for generating TCP packet flood on the target’s network. Well if you will notice given below image then you will observe that I had set delta time 0.1 sec as time elapses for the flow of traffic for all packets.  This is because as much as the time elapsed will be smaller as much as packet will be sent faster on the target’s network.

in the window are categories into three phases as Decode Editor, Hex Editor, and packet List. From the given image you can observe the following information which I had edited for TCP packet

Decode Editor: This section contains packet information such as protocol, Time to live and etc. Here you need to add source address responsible for sending a packet and then add destination address which is responsible for receiving incoming packet traffic.

  • Source address: 192.168.1.102
  • Destination address: 192.168.1.107

Hex Editor:  This section displays the raw information (Hexadecimal) related to the data size of the packet. By typing a random string you can increase the data length of the packet.

Packet size: 112 bytes

Packet List: It displays complete information of your packet which contains a source address and destination address, time to live and other information which we had edited.

Click on Adapter given in menu bar to select specific adapter for DOS attack. From given below image you can observe it showing adapter status: LAN Operational.

Note: It is only available when you have run the application as administrator.

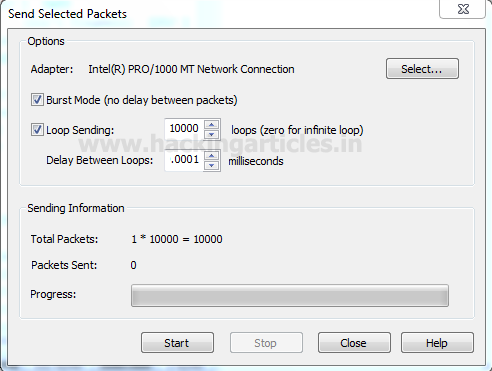

Click on Send option from the menu bar and enable the checkbox for “Burst Mode” and “Loop sending” and adjust its size according to your wish.

Then click on start to launch the TCP packet for DOS attack.

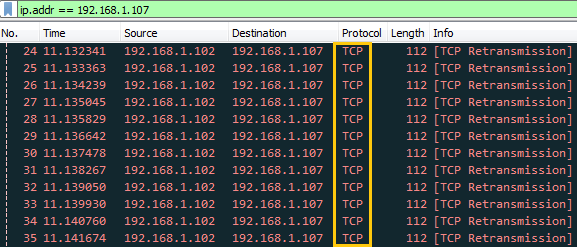

Using Wireshark we can capture packet and traffic between source and destination. So here you can perceive that infinite TCP packet is being transferred on target’s network after some time it will demolish the victim’s machine so that victim could not able to reply any legitimate request of other users.

TCP SYN DOS Attack

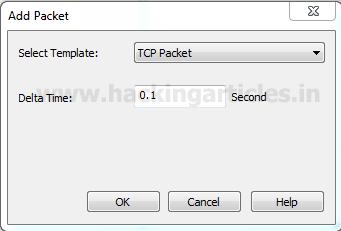

Again repeat the same to choose TCP packet for generating TCP SYN flood on target’s network. Well if you will notice given below image again then you will observe that I had set same delta time 0.1 sec.

You, people, must aware of TCP-SYN Flood attack so in order to generate only SYN packet traffic, activate the TCP flag for synchronizing sequence by changing bit form 0 to 1.

Hence this time I had set below information in decoder Editor and Hex editor.

  • Source address: 192.168.1.102
  • Destination address: 192.168.1.107
  • Flag: SYN
  • Packet size: 115 bytes

And repeat above step of TCP flood to begin the attack.

Click on Send option from the menu bar and enable the checkbox for “Burst Mode” and “Loop sending” and adjust its size according to your wish.

Then click on start to launch the TCP packet for DOS attack.

You can clearly observe the flow of traffic of SYN packet from attacker network to targets network after some time it will demolish the victim’s machine so that victim could not able to reply any legitimate request of other users.

TCP RST DOS Attack

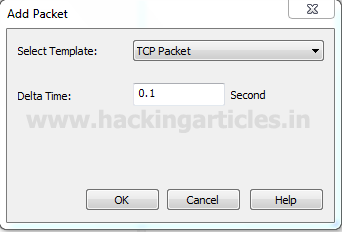

Again repeat the same to choose TCP packet for generating TCP Reset flood on target’s network. If you will notice given below image then you will observe that again I had set delta time 0.1 sec this is because as much as the time elapsed will be smaller as much as packet will be sent faster on target’s network.

You, people, must aware of TCP-RST Flood attack so in order to generate only Reset packet traffic, activate the TCP flag for Reset the connection by changing bit form 0 to 1.

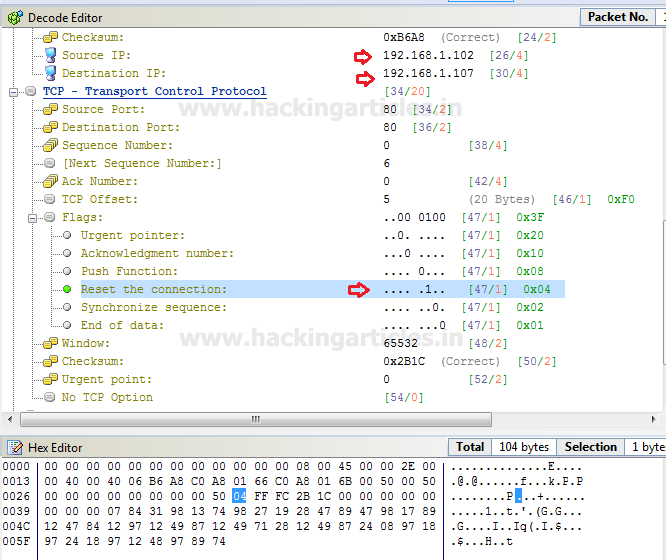

Hence this time I had set below information in decoder Editor and Hex editor.

  • Source address: 192.168.1.102
  • Destination address: 192.168.1.107
  • Flag: Reset
  • Packet size: 104 bytes

After then repeat the above step to begin the attack.

Click on Send option from the menu bar and enable the checkbox for “Burst Mode” and “Loop sending” and adjust its size according to your wish.

Then click on start to launch the TCP packet for DOS attack.

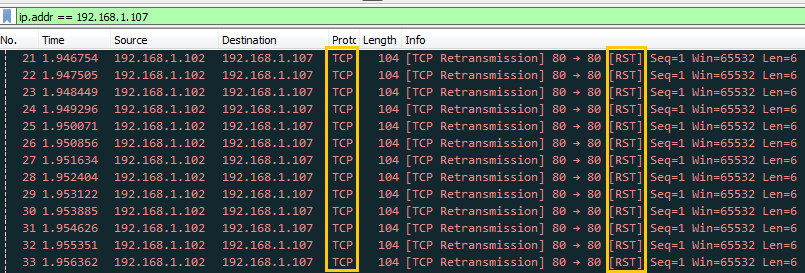

You can clearly observe the flow of traffic of RST packet from attacker network to targets network after some time it will demolish the victim’s machine so that victim could not able to reply any legitimate request of other users.

UDP DOS Attack

Again repeat the same to choose UDP packet for generating TCP flood on the target’s network. If you will notice given below image then you will observe that again I had set delta time 0.1 sec as time elapses for the flow of traffic for all packets.

This time I had set below information in decoder Editor and Hex editor.

  • Source address: 192.168.1.102
  • Destination address: 192.168.1.107
  • Source port: 80
  • Packet size: 113bytes

After editing your packet information verifies that changes through packet list are given on the right side of the window before launching an attack.

Click on Adapter to select specific adapter for DOS attack. From given below image you can observe it showing adapter status: LAN Operational.

Click on Send option from the menu bar and enable the checkbox for “Burst Mode” and “Loop sending” and adjust its size according to your wish.

Then click on start to launch UDP packet for DOS attack.

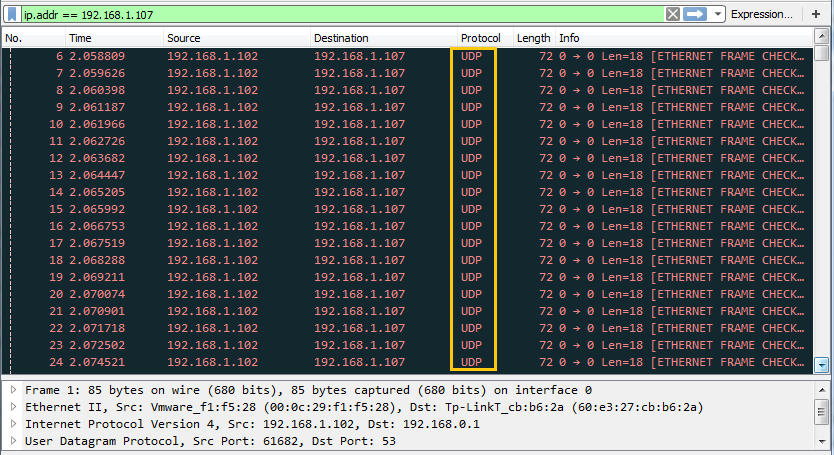

You can clearly observe in given below image the flow of traffic of UDP packets from attacker network to targets network after some time it will demolish the victim’s machine so that victim could not able to reply any legitimate request of other users.
